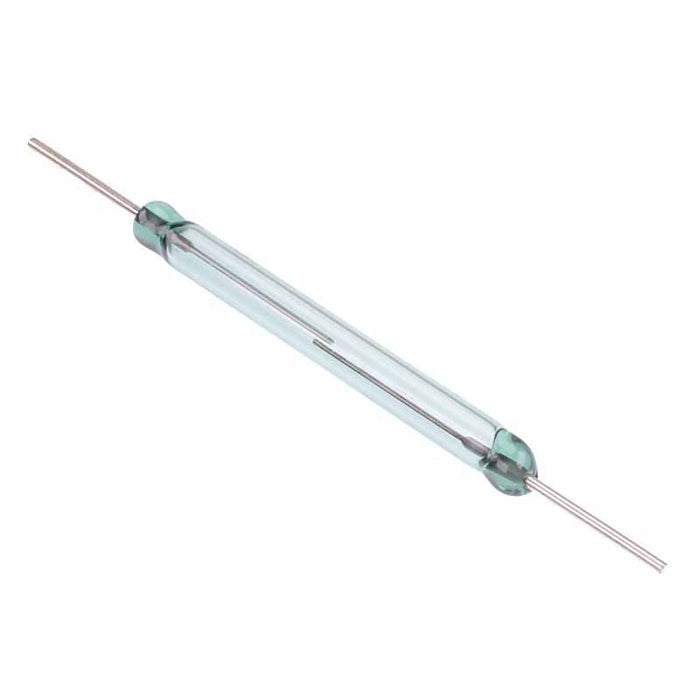

SPST-NO Reed Switch 1A 100VDC

SKU 482572

MPN: 482572

Availability:
163 in stock
Original price £1.44 - Original price £1.44
Original price
£1.44 Inc VAT
£1.44 - £1.44
Current price £1.44 Inc VAT
Reed switch featuring 1A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

  • Contacts: SPNO
  • Dimensions: 5 x 50mm (diameter x length)
  • Maximum switching voltage: 100VDC
  • Maximum switching current: 1A
  • Pull-In value: 80-130AT
  • Specification
    Back order lead time 120 Days
    Bounce time 1ms
    Carry current 3A
    Contact configuration SPST-NO
    Diameter 5mm
    Drop out sensitivity 25AT Min
    Length 50mm
    Material Rhodium
    Maximum switching current 1A
    Maximum switching voltage 100VDC
    Operating temperature -10°C to +70°C
    Pull in sensitivity 80-130AT
    Release time 0.5ms
