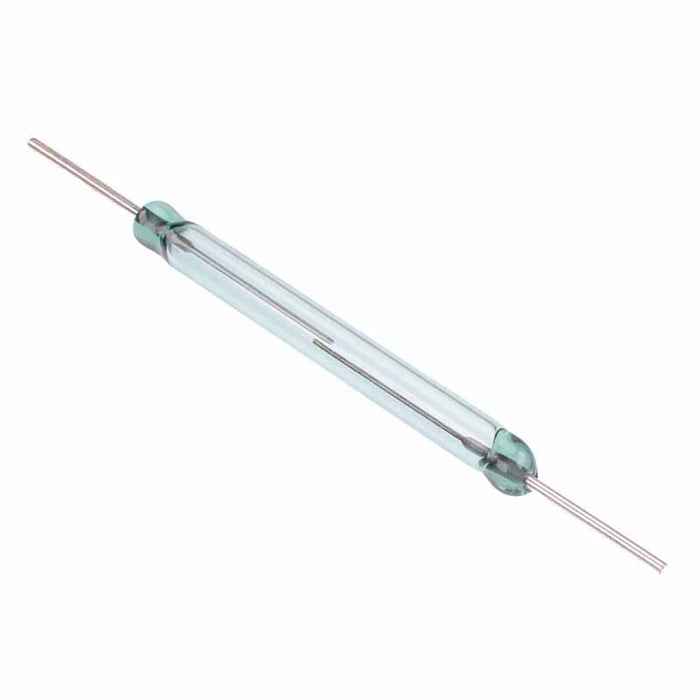

SPST-NO Reed Switch 1A 100VDC
SKU 482572
MPN: 482572
Availability:
Out of stock
Sold out
Original price
£1.11
-
Original price
£1.11
Original price
£1.11
£1.11
£1.11
-
£1.11
Current price
£1.11
Reed switch featuring 1A maximum switching current and NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.
Contacts: SPNO Dimensions: 5 x 50mm (diameter x length) Maximum switching voltage: 100VDC Maximum switching current: 1A Pull-In value: 80-130AT
Specification
| Back Order Lead Time | 120 Days |
| Bounce Time | 1ms |
| Carry Current | 3A |
| Contact Configuration | SPST-NO |
| Diameter | 5mm |
| Drop Out Sensitivity | 25AT Min |
| Length | 50mm |
| Material | Rhodium |
| Maximum Switching Current | 1A |
| Maximum Switching Voltage | 100VDC |
| Operating Temperature | -10°C to +70°C |
| Pull In Sensitivity | 80-130AT |
| Release Time | 0.5ms |
