SPST-NO Reed Switch 1A 230V - 2502-2722-020

by Comus
SKU 552476

MPN: 2502-2722-020

Out of stock
Sold out
Original price £1.39 - Original price £1.39
Original price
£1.39 Inc VAT
£1.39 - £1.39
Current price £1.39 Inc VAT

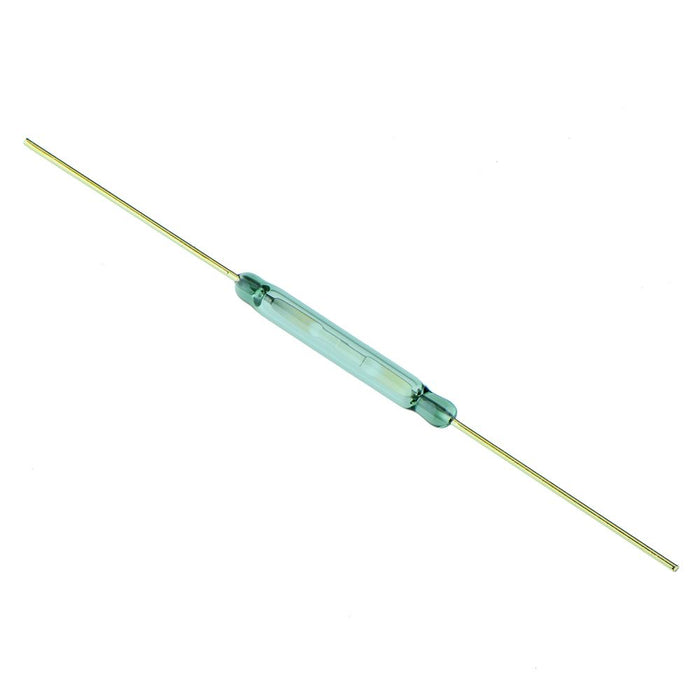

2502-2722-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 1A
  • Maximum switching power: 12VA
  • Pull-in sensitivity: 30-50AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 2A
    Contact configuration SPST-NO
    Diameter 2.6mm
    Drop out sensitivity 5AT Min
    Length 19mm
    Material Rhodium
    Maximum switching capacity 12VA
    Maximum switching current 1A
    Maximum switching voltage 230VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 30-50AT
    Release time 0.1ms
