SPST-NO Reed Switch 3A 1.5kV - 2202-1513-060

by Comus
SKU 552468

MPN: 2202-1513-060

7 in stock
Original price £5.69 - Original price £5.69
Original price
£5.69 Inc VAT
£5.69 - £5.69
Current price £5.69 Inc VAT

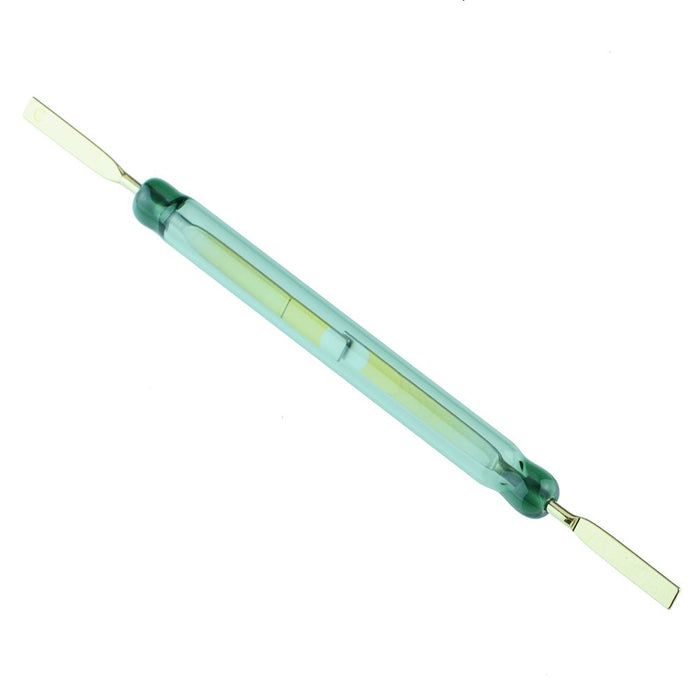

2202-1513-060 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 1500V AC/DC
  • Maximum switching current: 3A
  • Maximum switching power: 120VA
  • Pull-in sensitivity: 50-95AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 5A
    Contact configuration SPST-NO
    Diameter 5.4mm
    Drop out sensitivity 30AT Min
    Length 52mm
    Material Rhodium
    Maximum switching capacity 120VA
    Maximum switching current 3A
    Maximum switching voltage 1500VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 50-95AT
    Release time 0.2ms
