SPST-NO Reed Switch 500mA 140V - 2502-2522-020

by Comus
SKU 552475

MPN: 2502-2522-020

10 in stock
Original price £1.30 - Original price £1.30
Original price
£1.30 Inc VAT
£1.30 - £1.30
Current price £1.30 Inc VAT

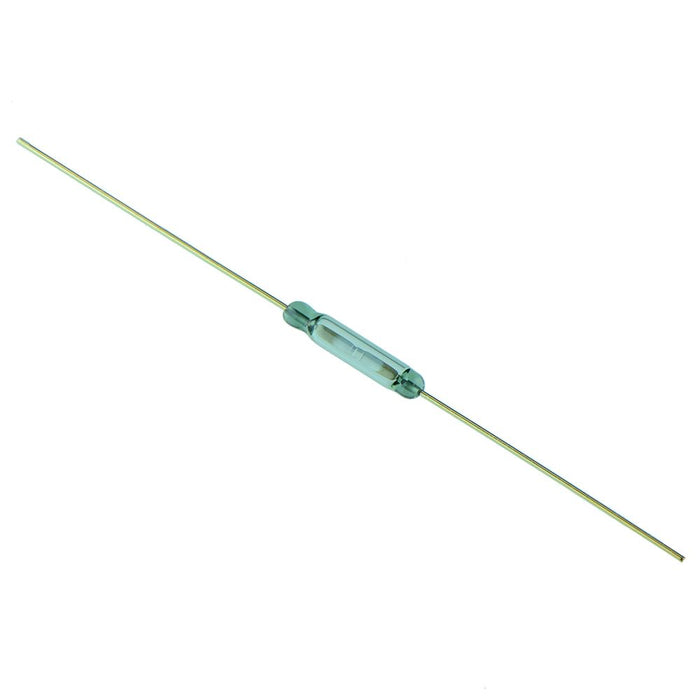

2502-2322-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 140V AC/DC
  • Maximum switching current: 0.5A
  • Maximum switching power: 6VA
  • Pull-in sensitivity: 10-40AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.3ms
    Carry current 0.8A
    Contact configuration SPST-NO
    Diameter 2.1mm
    Drop out sensitivity 5AT Min
    Length 11mm
    Material Rhodium
    Maximum switching capacity 6VA
    Maximum switching current 0.5A
    Maximum switching voltage 140VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 10-40AT
    Release time 0.05ms
