SPST-NO Reed Switch 500mA 200V 18-32AT - RI-03A

by Comus
SKU 552494

MPN: RI-03A

Availability:
30 in stock
Original price £0.98 - Original price £0.98
Original price
£0.98
£0.98 - £0.98
Current price £0.98

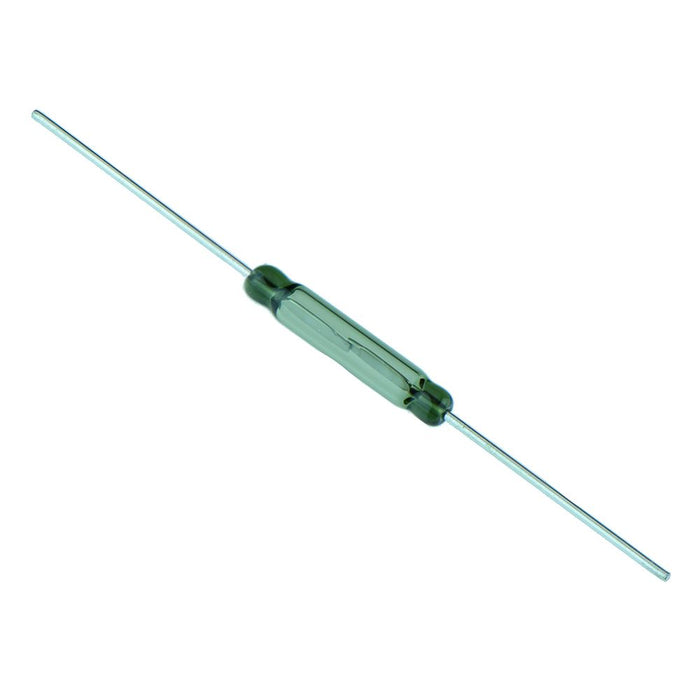

The RI-03A micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Ideal for general purpose reed relays and sensors
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VDC, 140VAC
  • Maximum switching current: 500mA
  • Operating range: 18-32AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.15ms
    Carry Current 2.5A
    Contact Configuration SPST-NO
    Diameter 2.54mm
    Length 14.5mm
    Material Rhodium
    Maximum Switching Capacity 10W
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 200VDC, 140VAC
    Operating Temperature -55°C to +125°C
    Pull In Sensitivity 18-32AT
    Release Time 30µs
