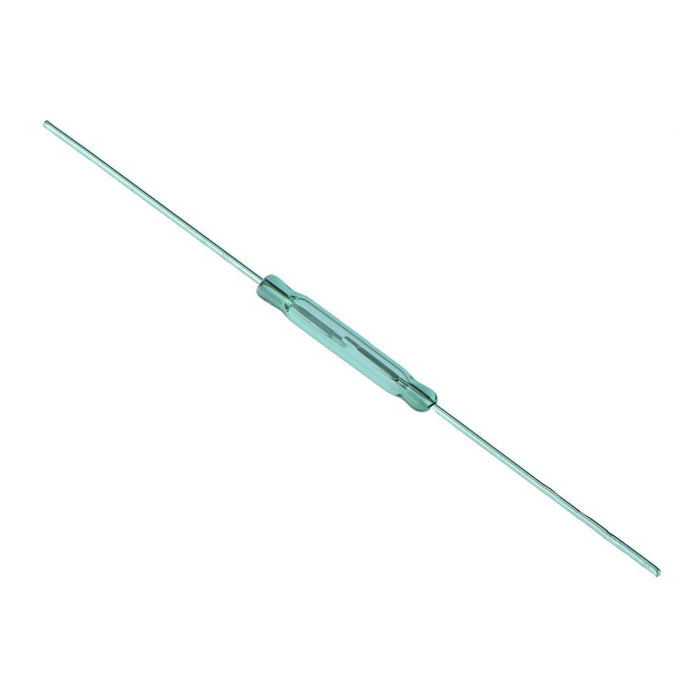

SPST-NO Reed Switch 500mA 200VDC 16-25AT - RI-07AA

by Comus
SKU 552496


Only 1 left!
Original price £1.06 - Original price £1.06
Original price
£1.06 Inc VAT
£1.06 - £1.06
Current price £1.06 Inc VAT
The RI-07AA pico dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Ideal for general purpose reed relays and sensors
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VDC, 140VAC
  • Maximum switching current: 500mA
  • Operating range: 16-25AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.05ms
    Carry current 1.75A
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 13.5mm
    Material Rhodium
    Maximum switching capacity 10W
    Maximum switching current 0.5A
    Maximum switching voltage 200VDC, 140VAC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 16-25AT
    Release time 30µs
