SPST-NO Reed Switch 500mA 200VDC - RI-27A

by Comus
SKU 552500

MPN: RI-27A

Availability:
8 in stock
Original price £1.47 - Original price £1.47
Original price
£1.47
£1.47 - £1.47
Current price £1.47

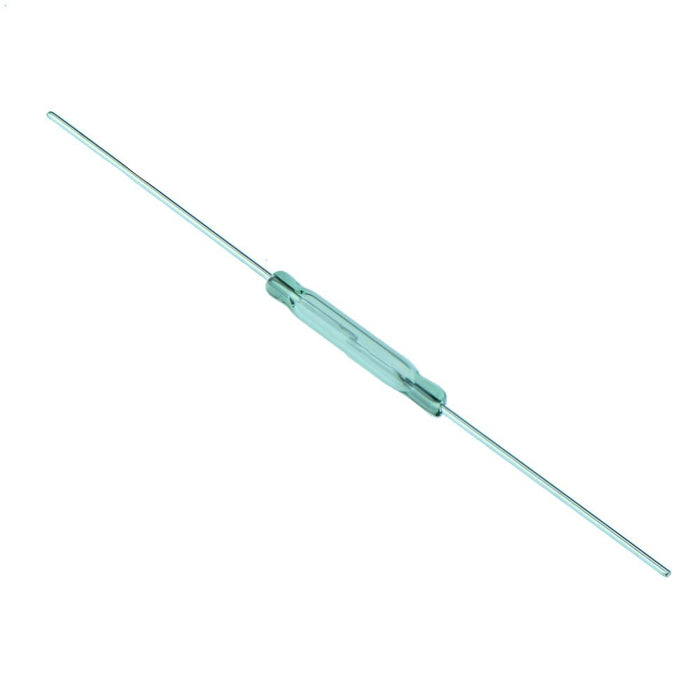

The RI-27A pico dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Ideal for ATE switching
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VDC, 140VAC
  • Maximum switching current: 500mA
  • Operating range: 20-34AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.05ms
    Carry Current 1.75A
    Contact Configuration SPST-NO
    Diameter 1.8mm
    Length 13.5mm
    Material Rhodium
    Maximum Switching Capacity 10W
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 200VDC, 140VAC
    Operating Temperature -55°C to +125°C
    Pull In Sensitivity 20-34AT
    Release Time 30µs
