SPST-NO Reed Switch 500mA 400V - 2502-2314-020
by Comus
SKU 552473
MPN: 2502-2314-020
Availability:
98 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26

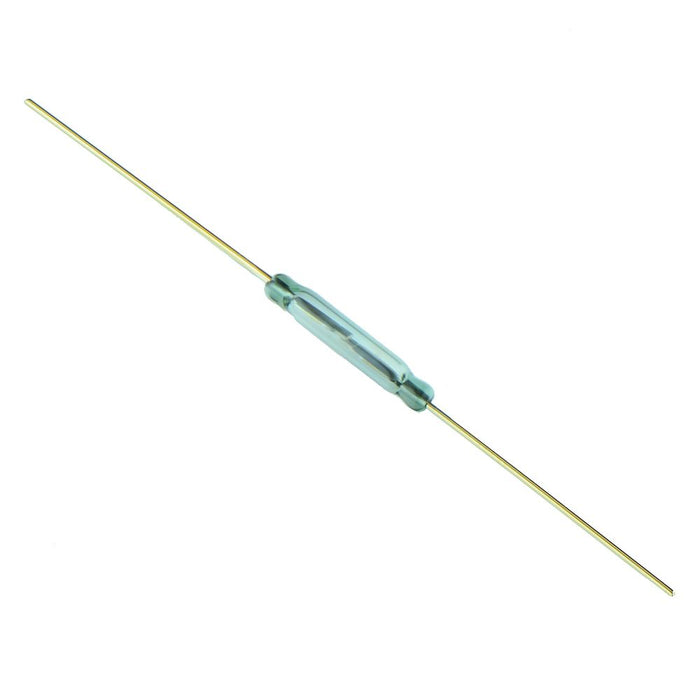

2502-2314-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Normally open contacts Maximum switching voltage: 400V AC/DC Maximum switching current: 0.5A Maximum switching power: 10VA Pull-in sensitivity: 10-35AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 0.2ms |
| Carry Current | 1A |
| Contact Configuration | SPST-NO |
| Diameter | 2.3mm |
| Drop Out Sensitivity | 5AT Min |
| Length | 14.5mm |
| Material | Rhodium |
| Maximum Switching Capacity | 10VA |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 400VAC/DC |
| Operating Temperature | -40°C to +125°C |
| Pull In Sensitivity | 10-35AT |
| Release Time | 0.05ms |
