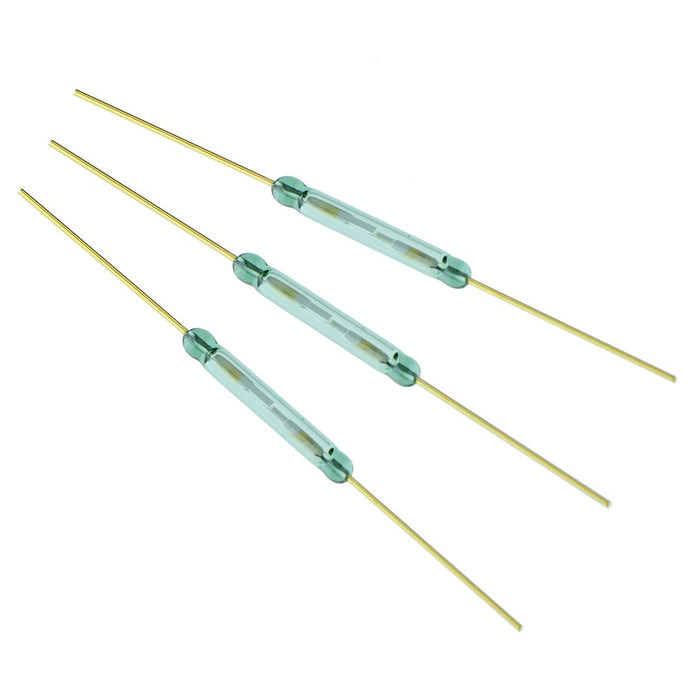

SPST-NO Reed Switch Kit (20-30 / 30-40 / 40-50AT) - GC2722K

by Comus
SKU 552481

MPN: GC2722K

Availability:
11 in stock
Original price £2.30 - Original price £2.30
Original price
£2.30 Inc VAT
£2.30 - £2.30
Current price £2.30 Inc VAT
GC2722 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.

  • Includes 1pc of each sensitivity (low, medium, high)
  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 1A
  • Maximum switching power: 12VA
  • Pull-in sensitivity: 20-30 / 30-40 / 40-50AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 2A
    Contact configuration SPST-NO
    Diameter 2.6mm
    Drop out sensitivity 5AT Min
    Length 19mm
    Material Rhodium
    Maximum switching capacity 12VA
    Maximum switching current 1A
    Maximum switching voltage 230VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 20-30 / 30-40 / 40-50AT
    Release time 0.1ms
