SPST-NO Reed Switch Kit 2A - GC3717K
by Comus
SKU 552483
MPN: GC3717K
Availability:
10 in stock
Original price
£2.71
-
Original price
£2.71
Original price
£2.71
£2.71
-
£2.71
Current price
£2.71

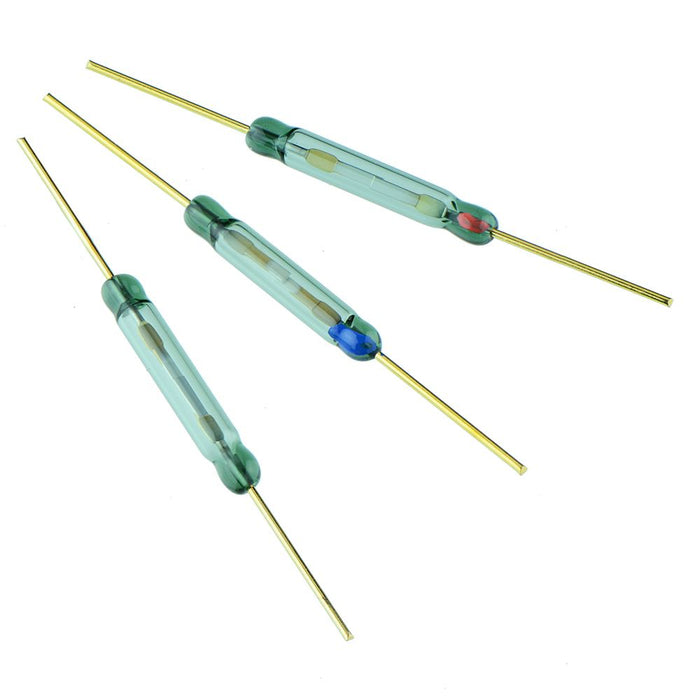

GC3717 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.
Include 1 of each sensitivity Normally open contacts Maximum switching voltage: 400V AC/DC Maximum switching current: 2A Maximum switching power: 40VA Pull-in sensitivity: 15-25 / 25-35 / 35-50AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 0.5ms |
| Carry Current | 3A |
| Contact Configuration | SPST-NO |
| Diameter | 2.6mm |
| Drop Out Sensitivity | 15AT Min |
| Length | 19mm |
| Material | Rhodium |
| Maximum Switching Capacity | 40W/VA |
| Maximum Switching Current | 2A |
| Maximum Switching Voltage | 400VAC/DC |
| Operating Temperature | -40°C to +125°C |
| Pull In Sensitivity | 15-25 / 25-35 / 35-50AT |
| Release Time | 0.1ms |
