SPST-NO Reed Switch Kit - GC3723K
by Comus
SKU 552485
MPN: GC3723K
Availability:
12 in stock
Original price
£2.62
-
Original price
£2.62
Original price
£2.62
Inc VAT
£2.62
-
£2.62
Current price
£2.62
Inc VAT

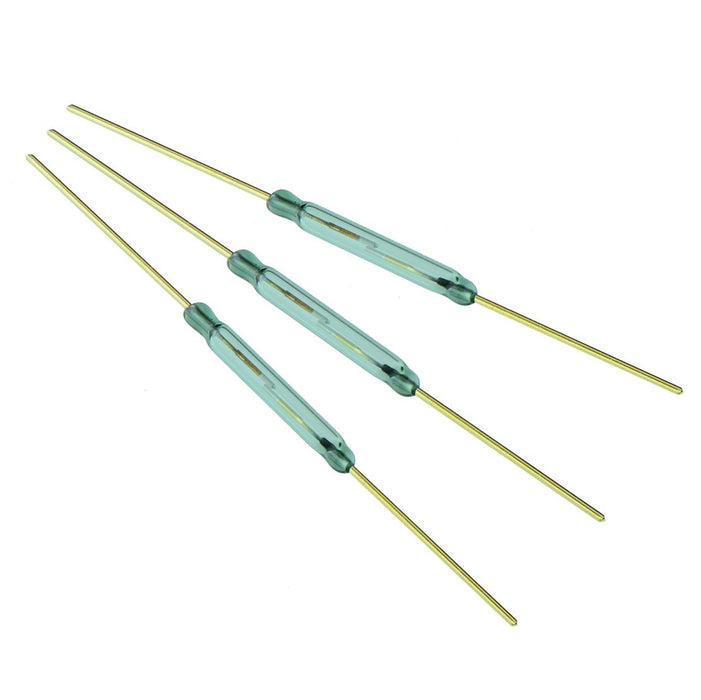

GC3723 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.
Includes 1qty of each sensitivity Normally open contacts Maximum switching voltage: 230V AC/DC Maximum switching current: 2A Maximum switching power: 40VA Pull-in sensitivity: 15-25 / 25-35 / 35-50AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.5ms |
| Carry current | 3A |
| Contact configuration | SPST-NO |
| Diameter | 2.6mm |
| Drop out sensitivity | 15AT Min |
| Length | 19mm |
| Material | Rhodium |
| Maximum switching capacity | 40W/VA |
| Maximum switching current | 2A |
| Maximum switching voltage | 230VAC/DC |
| Operating temperature | -40°C to +125°C |
| Pull in sensitivity | 15-25 / 25-35 / 35-50AT |
| Release time | 0.1ms |
