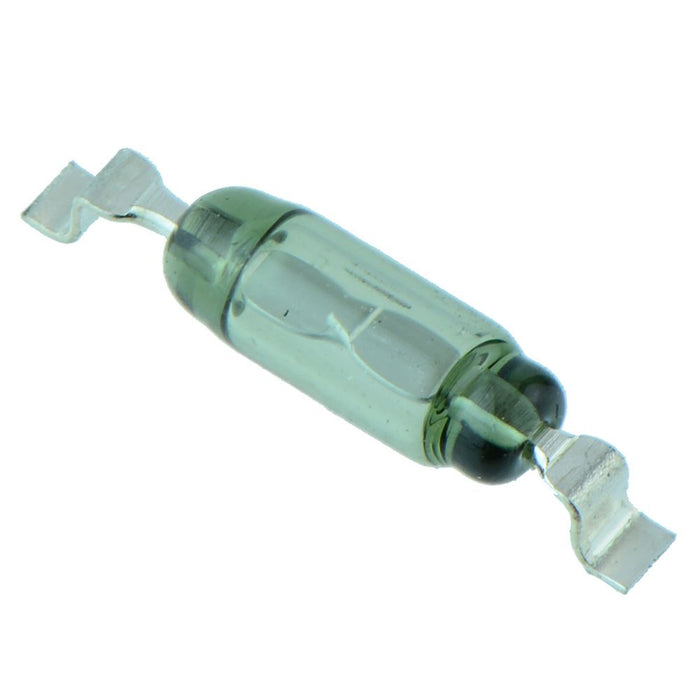

SPST-NO SMD Reed Switch 350mA 175V - RI-80

by Comus
SKU 552554

MPN: RI-80-G

Availability:
Out of stock
Sold out
Original price £3.50 - Original price £3.50
Original price
£3.50 Inc VAT
£3.50 - £3.50
Current price £3.50 Inc VAT
The RI-80-G is a ultra-micro dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electro-magnet, a permanent magnet or a combination of both.

  • Ideal for proximity sensors, telecom & medical applications
  • Contact layers: gold, sputtered ruthenium
  • Superior glass-to-metal seal and blade alignment
  • Maximum switching power: 5W
  • Maximum switching voltage: 175VDC, 140VAC
  • Maximum switching current: 350mA DC, 250mA AC
  • Operating range: 5-15AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.1ms
    Carry current 0.5A
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 5mm
    Material Rhodium
    Maximum switching capacity 5W
    Maximum switching current 0.25A
    Maximum switching voltage 175VDC, 140VAC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 5-15AT
    Release time 20µs
