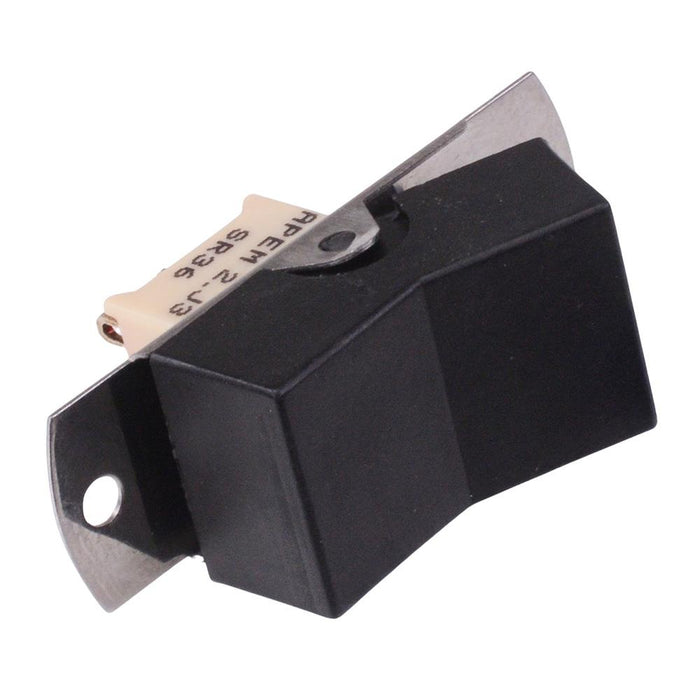

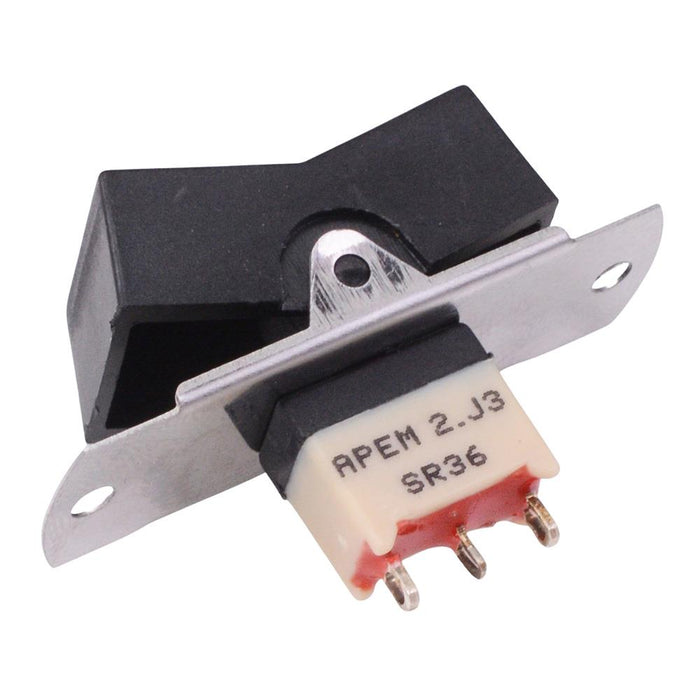

SR36S010012 APEM On-On Vertical Rocker Switch SPDT 4A 30VDC
by APEM
SKU 488074
MPN: SR36S010012
Availability:
45 in stock
Original price
£2.44
-
Original price
£2.44
Original price
£2.44
£2.44
£2.44
-
£2.44
Current price
£2.44
The SR36S010012 is a washable miniature rocker switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Black rocker actuator SPDT contacts On-On function Vertical mounting Silver terminals Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm Panel cut-out: 27.5 x 15.5mm Mounting hole pitch: 35mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 27.5 x 15.5mm |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
