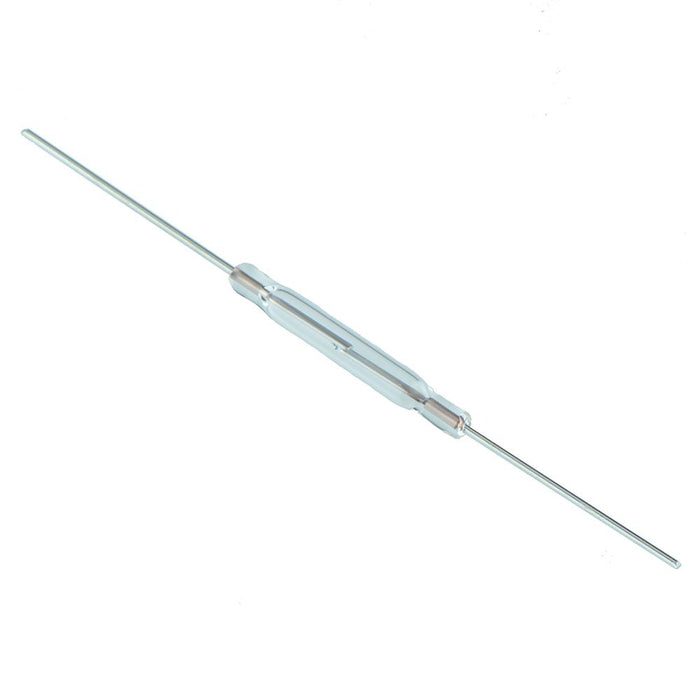

Standard Dry Contact Reed Switch 1A - GR100-15-20

by Comus
SKU 552487

MPN: GR100-15-20

Availability:
48 in stock
Original price £1.17 - Original price £1.17
Original price
£1.17
£1.17 - £1.17
Current price £1.17
GR100-15-20 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 150VAC, 100VDC
  • Maximum switching current: 1A
  • Maximum switching power: 10VA
  • Specification
    Back Order Lead Time 180 Days
    Carry Current 1.5A
    Contact Configuration SPST-NO
    Length 20.3mm
    Material Rhodium
    Maximum Switching Capacity 10VA
    Maximum Switching Current 1A
    Maximum Switching Voltage 100VDC, 150VAC
