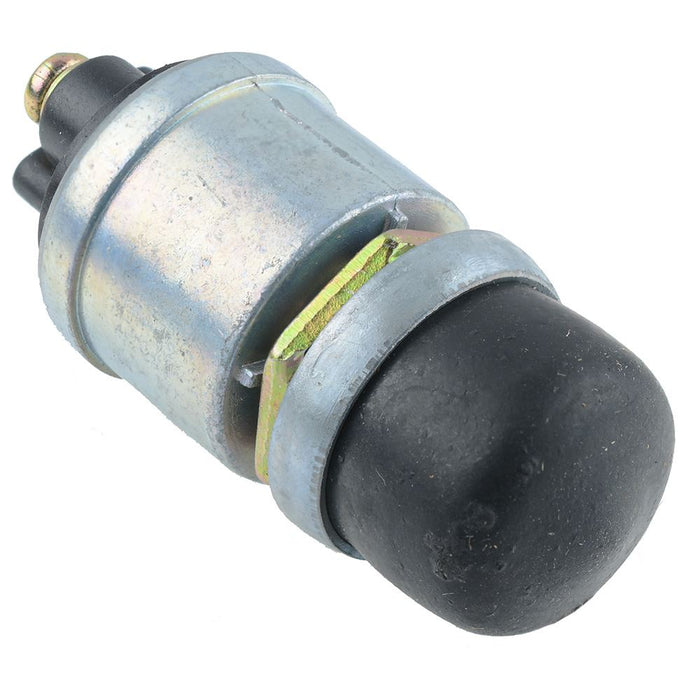

Starter Push Button Switch

SKU 480941

MPN: 480941

Availability:
Out of stock
Sold out
Original price £2.32 - Original price £2.32
Original price
£2.32 Inc VAT
£2.32 - £2.32
Current price £2.32 Inc VAT
Automotive push button switch suitable for use as a horn or engine starter. The switch features a rubber button, and is waterproof making it ideal for a wide range of automotive applications.

  • Rating: 10A 12VDC
  • Screw terminals
  • Switch operation: Off-(On)
  • Mounting hole diameter: 16mm
  • Mechanical life: 10,000+ cycles
  • Specification
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 10A 12VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 16mm
    Switch operation Off-(On)
    Terminal type Screw
    Voltage rating 12VDC
