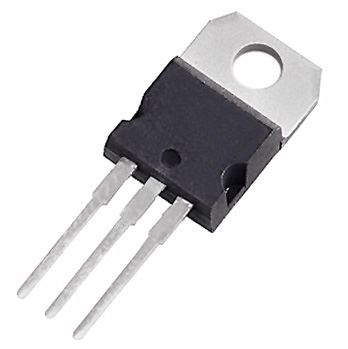

STP14NF10 MOSFET 100V 15A N Channel TO220

by ST
SKU 551647


28 in stock
Original price £1.00 - Original price £1.00
Original price
£1.00 Inc VAT
£1.00 - £1.00
Current price £1.00 Inc VAT

The STP14NF10 MOSFET Transistor is an N-Channel 100V transistor supplied in TO220 packaging. This power MOSFET is designed to minimise input capacitance and gate charge. It is suitable as primary switch in advanced high efficiency, high frequency isolated DC-DC convertors for Telecom and Computer applications. For further technical specifications please refer to the attached datasheet.

  • 100 Volt VDS
  • RDS(on) 13 mOhm
  • Gate Source Voltage 4V
  • N Channel 100V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • Utilised for switching applications
  • MOSFET 100V 15A TO220
Back order lead time 5 Days
Continuous drain current 15A
Drain source on resistance 130MΩ
Drain source voltage 100V
Input capacitance 460pF
Maximum gate source voltage 4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 90W
Type N-Channel
