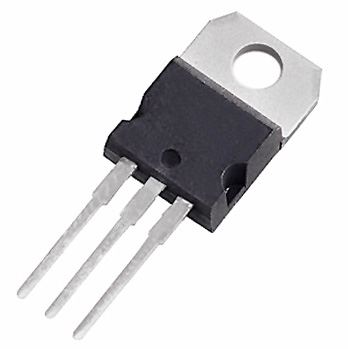

STP36NF06L MOSFET 60V 30A N Channel TO220

by ST
SKU 551643

MPN: STP36NF06L

Availability:
1984 in stock
Original price £0.46 - Original price £0.46
Original price
£0.46 Inc VAT
£0.46 - £0.46
Current price £0.46 Inc VAT

The STP36NF06L MOSFET Transistor is an N Channel 60V transistor supplied in TO220 packaging. This power MOSFET is the latest development of the strip based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characterstics and less critical alignment steps. The transistor is particularly suitable for switching applications. For further technical specifications please refer to the attached datasheet.

  • 60 Volt VDS
  • RDS(on) 40 mOhm
  • Gate Source Voltage 2.5V
  • N Channel 60V
  • Exceptional dv/dt capability
  • 100% avalanche tested
  • Low threshold drive
  • MOSFET 60V 30A TO220
Specification
Back order lead time 5 Days
Continuous drain current 30A
Drain source on resistance 40MΩ
Drain source voltage 60V
Input capacitance 660pF
Maximum gate source voltage 2.5V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 330W
Type N-Channel
