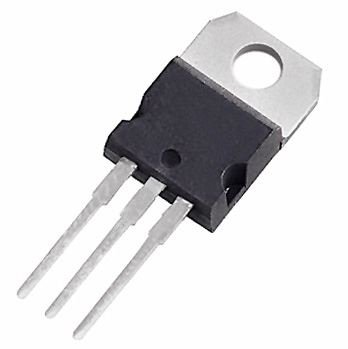

STP3NK60ZFP MOSFET 600V 2.4A N Channel TO220
by ST
SKU 551652
MPN: STP3NK60ZFP
Availability:
27 in stock
Original price
£1.14
-
Original price
£1.14
Original price
£1.14
Inc VAT
£1.14
-
£1.14
Current price
£1.14
Inc VAT
The STP3NK60ZFP MOSFET Transistor is an N-Channel 600V transistor supplied in TO220 packaging. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Suitable for high current & high speed switching, offline power supplies, adaptors and lighting. For further technical specifications please refer to the attached datasheet.
- 600 Volt VDS
- RDS(on) 3.6 Ohm
- Gate Source Voltage 4.5V
- N Channel 600V
- Extremely high dv/dt capability
- 100% avalanche tested/li>
- Gate charge minimised
- Very low intrinsic capacitances
- MOSFET 600V 2.4A TO220
Specification
| Back order lead time | 5 Days |
| Continuous drain current | 2.4A |
| Drain source on resistance | 3.6Ω |
| Drain source voltage | 600V |
| Input capacitance | 311pF |
| Maximum gate source voltage | 4.5V |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO220 |
| Power dissipation | 30W |
| Type | N-Channel |
