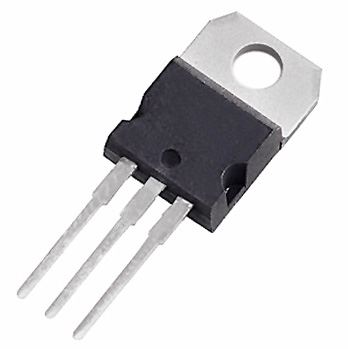

STP4NK80Z MOSFET 800V 3A N Channel TO220

by ST
SKU 551649


25 in stock
Original price £1.58 - Original price £1.58
Original price
£1.58 Inc VAT
£1.58 - £1.58
Current price £1.58 Inc VAT

The STP4NK80Z MOSFET Transistor is an N-Channel 800V transistor supplied in TO220 packaging. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Utilised for high current, high speed switching, ideal for off-line power supplies, adaptors, PFC and lighting. For further technical specifications please refer to the attached datasheet.

  • 800 Volt VDS
  • RDS(on) 3.5 Ohm
  • Gate Source Voltage 4.5V
  • N Channel 800V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • Utilised for switching applications
  • Gate charge minimised
  • Very low intrinsic capacitances
  • MOSFET 800V 3A TO220
Back order lead time 5 Days
Continuous drain current 3A
Drain source on resistance 3.5MΩ
Drain source voltage 800V
Input capacitance 575pF
Maximum gate source voltage 4.5V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 190W
Type N-Channel
