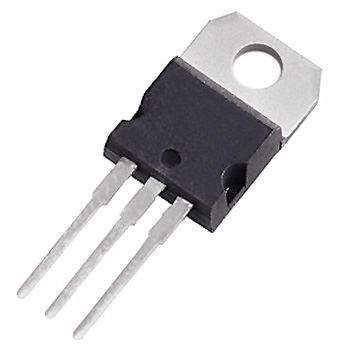

STP55NF06 MOSFET 60V 50A N Channel TO220
by ST
SKU 551646
MPN: STP55NF06
Availability:
51 in stock
Original price
£1.05
-
Original price
£1.05
Original price
£1.05
£1.05
-
£1.05
Current price
£1.05
The STP55NF06 MOSFET Transistor is an N-Channel 60V transistor supplied in TO220 packaging. This power MOSFET is designed to minimise input capacitance and gate charge. It is suitable as primary switch in advanced high efficiency, high frequency isolated DC-DC convertors for Telecom and Computer applications. For further technical specifications please refer to the attached datasheet.
- 60 Volt VDS
- RDS(on) 18 mOhm
- Gate Source Voltage 4V
- N Channel 60V
- Extremely high dv/dt capability
- 100% avalanche tested/li>
- MOSFET 60V 50A TO220
Specification
| Back Order Lead Time | 5 Days |
| Continuous Drain Current | 50A |
| Drain Source On Resistance | 18MΩ |
| Drain Source Voltage | 60V |
| Input Capacitance | 1300pF |
| Maximum Gate Source Voltage | 4V |
| Maximum Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Package | TO220 |
| Power Dissipation | 160W |
| Type | N-Channel |
