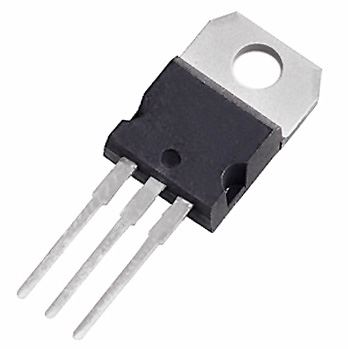

STP7NK80ZFP MOSFET 800V 5.2A N Channel TO220

by ST
SKU 551648


49 in stock
Original price £2.92 - Original price £2.92
Original price
£2.92 Inc VAT
£2.92 - £2.92
Current price £2.92 Inc VAT

The STP7NK80ZFP MOSFET Transistor is an N-Channel 800V transistor supplied in TO220 packaging. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Utilised for Switching Applications. For further technical specifications please refer to the attached datasheet.

  • 800 Volt VDS
  • RDS(on) 1.8 Ohm
  • Gate Source Voltage 4.5V
  • N Channel 800V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • Utilised for switching applications
  • Gate charge minimised
  • Very low intrinsic capacitances
  • MOSFET 800V 5.2A TO220
Back order lead time 5 Days
Continuous drain current 5.2A
Drain source on resistance 1.8MΩ
Drain source voltage 800V
Input capacitance 1138pF
Maximum gate source voltage 4.5V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 30W
Type N-Channel
