Subminiature Dry Contact Reed Switch 500mA - GR501-15-20

by Comus
SKU 552488

MPN: GR501-15/20

Availability:
Only 5 left!
Original price £1.09 - Original price £1.09
Original price
£1.09 Inc VAT
£1.09 - £1.09
Current price £1.09 Inc VAT

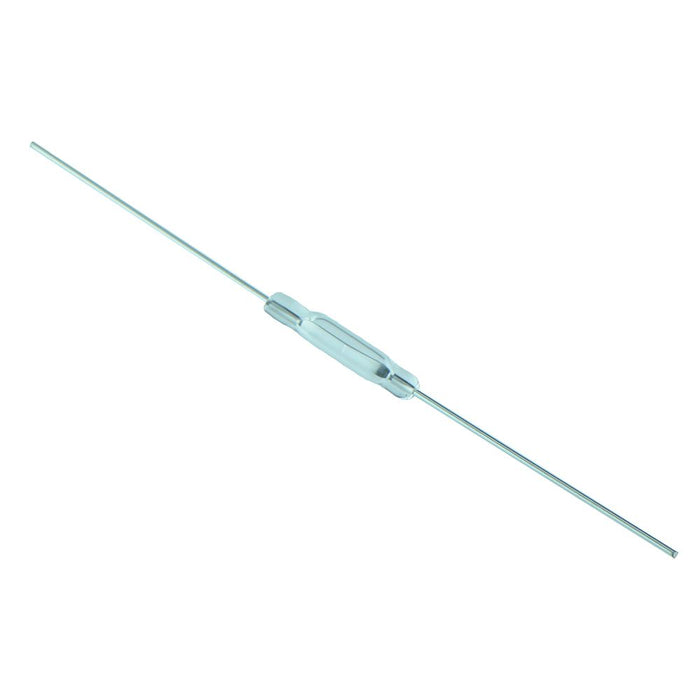

GR501-1520 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 100VDC, 125VAC
  • Maximum switching current: 0.5A
  • Maximum switching power: 10VA
  • Specification
    Back Order Lead Time 180 Days
    Carry Current 1A
    Contact Configuration SPST-NO
    Length 12.7mm
    Material Rhodium
    Maximum Switching Capacity 10VA
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 100VDC, 125VAC
