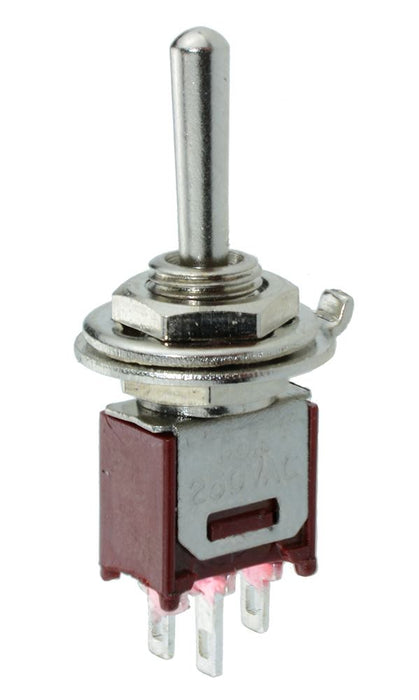

Subminiature On-Off-On Toggle Switch 1.5A

SKU 122025

MPN: 122025

Availability:
341 in stock
Original price £0.81 - Original price £0.81
Original price
£0.81 Inc VAT
£0.81 - £0.81
Current price £0.81 Inc VAT

Sub-miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.

  • On-Off-On action
  • SPDT contacts
  • 5mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Maximum current: 1.5A
  • Maximum voltage: 250VAC
  • Maximum Panel Thickness: 2mm
Specification
Actuation Latching
Back Order Lead Time 45 Days
Contact Configuration SPDT
Contact Rating 1.5A 250VAC
Current Rating 1.5A
Electrical Life 10,000 Cycles
Illuminated No
Mounting Style Panel
Number of Poles 1
Number of Positions 3
Operating Temperature -25°C to +85°C
Panel Cut Out 5mm
Switch Operation On-Off-On
Terminal Type Solder
Voltage Rating 250VAC
