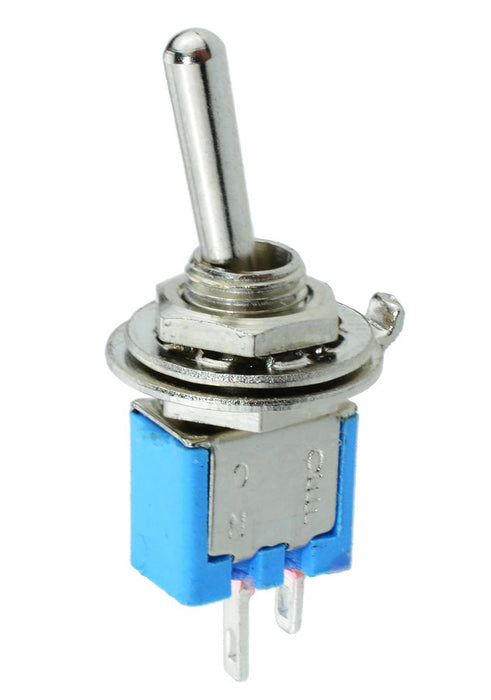

Subminiature On-Off Toggle Switch 1.5A
SKU 122024
MPN: 122024
Availability:
995 in stock
Original price
£0.72
-
Original price
£0.72
Original price
£0.72
£0.81
£0.81
-
£0.81
Current price
£0.81
Sub-miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.
On-Off action SPST contacts 5mm panel cut-out Solder terminals Secured with nut Maximum current: 1.5A Maximum voltage: 250VAC Maximum Panel Thickness: 2mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 5mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
