Surface Mount Changeover Battery Isolator Switch W/AFD 350A 32VDC

SKU 489625

MPN: SF52241-9

Availability:
42 in stock
Original price £22.20 - Original price £22.20
Original price
£22.20
£22.20 - £22.20
Current price £22.20

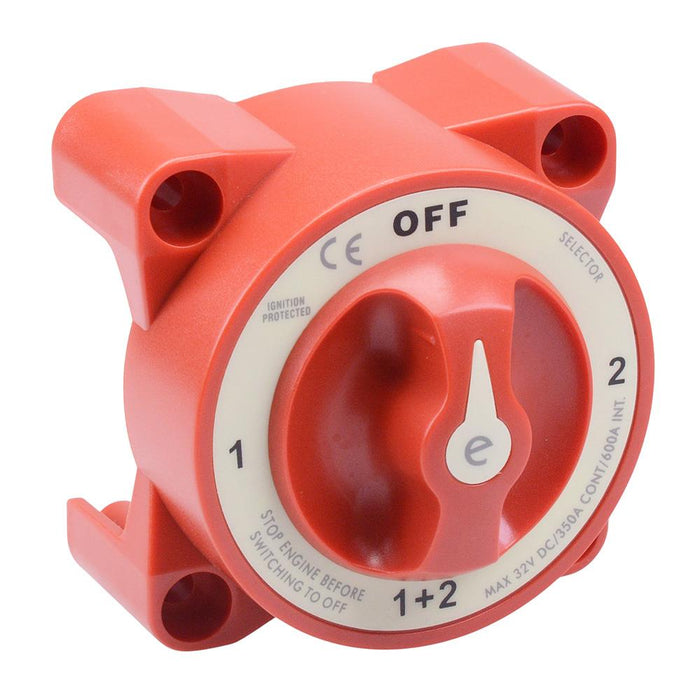

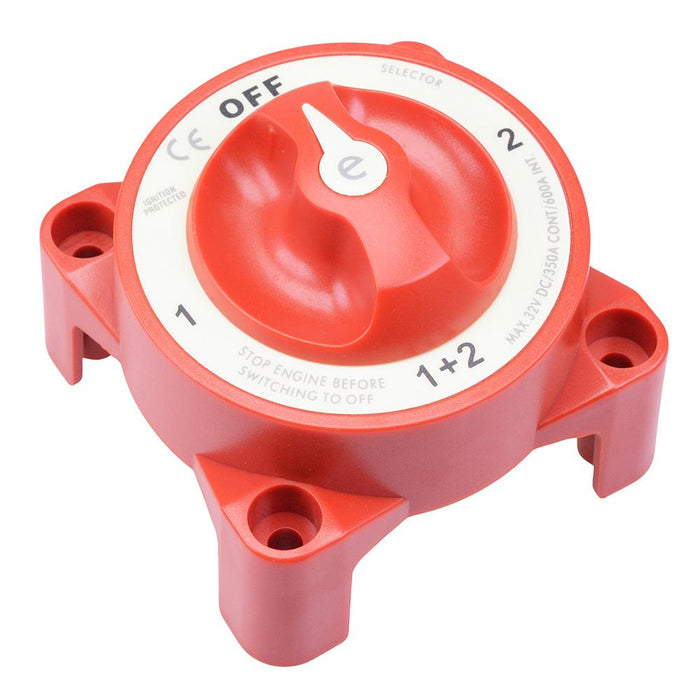

Heavy duty surface mount changeover battery isolator switch featuring a low profile design and ignition protection. The switch can be either surface or recess mounted and is suitable for automotive and marine applications with a continuous current up to 350A.

  • Function: 1, 2, 1&2, OFF
  • Make before break switching
  • Includes AFD (alternator field disconnect
  • Continuous current: 350A @ 32VDC
  • Crank current: 600A
  • Voltage rating: 32VDC

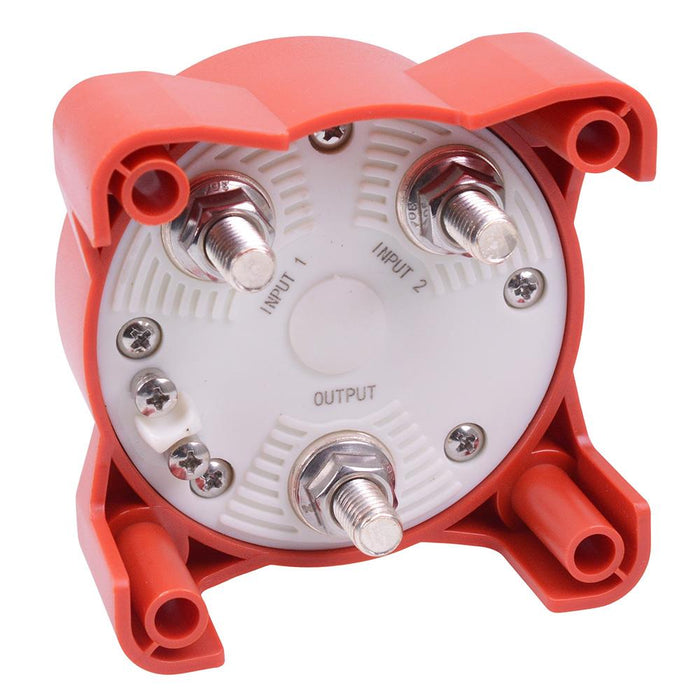

  • Stud size: 3*M10
  • Size: 97.5 x 97.5 x 80.3mm
  • Specification
    Back Order Lead Time 120 Days
    Current Rating 350A
    MOQ 1
    Mounting Style Surface Mount
    Number of Positions 4
    Switch Operation Changeover
    Terminal Type M10 Studs
    Voltage Rating 32VDC
