SWW236A-7UL APEM On-On Washable PCB Miniature Toggle Switch SPDT 0.4A 20V
by APEM
SKU 490157
MPN: SWW236A-7UL
Availability:
25 in stock
Original price
£4.76
-
Original price
£4.76
Original price
£4.76
£4.76
-
£4.76
Current price
£4.76

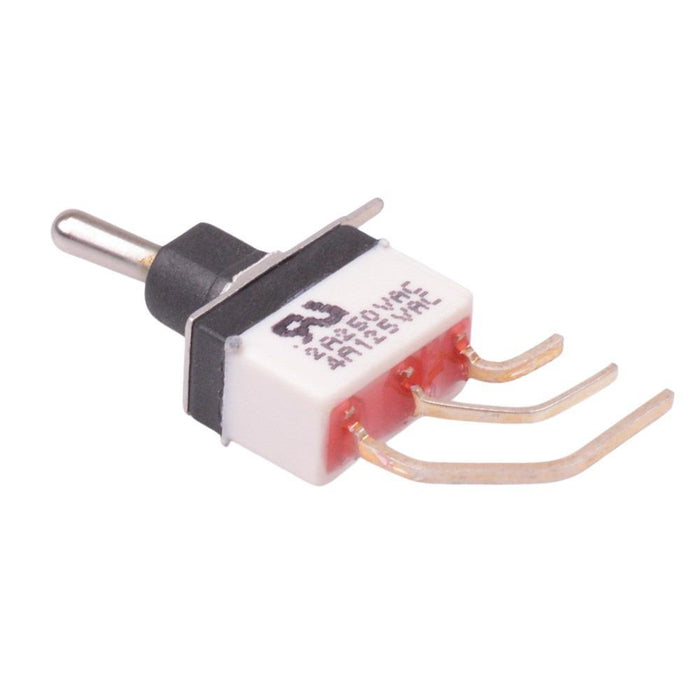

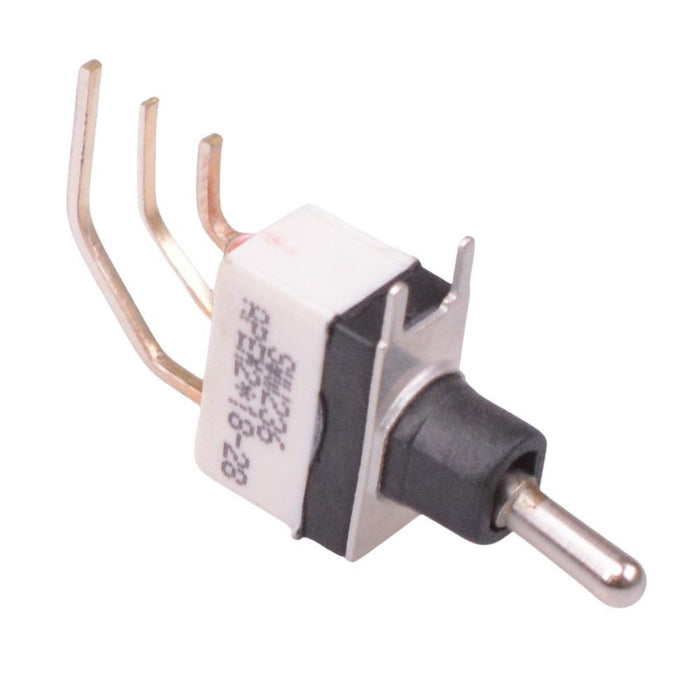

The SWW236A-7UL is a washable miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Short lever SPDT contacts On-On function Right angle terminals Vertical mounting Silver terminals Washable Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm
Specification
Actuation | Latching |
Contact Configuration | SPDT |
Contact Material | Silver |
Contact Rating | 4A 30VDC |
Current Rating | 4A |
Electrical Life | 40,000 Cycles |
Illuminated | No |
MOQ | 1 |
Mounting Style | PCB |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Pitch | 4.7mm |
Product Series | S |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 30VDC |
