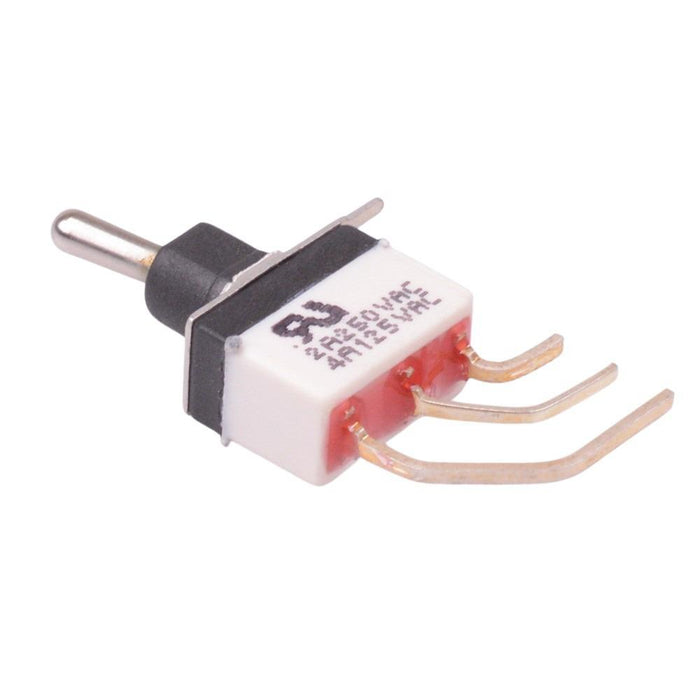

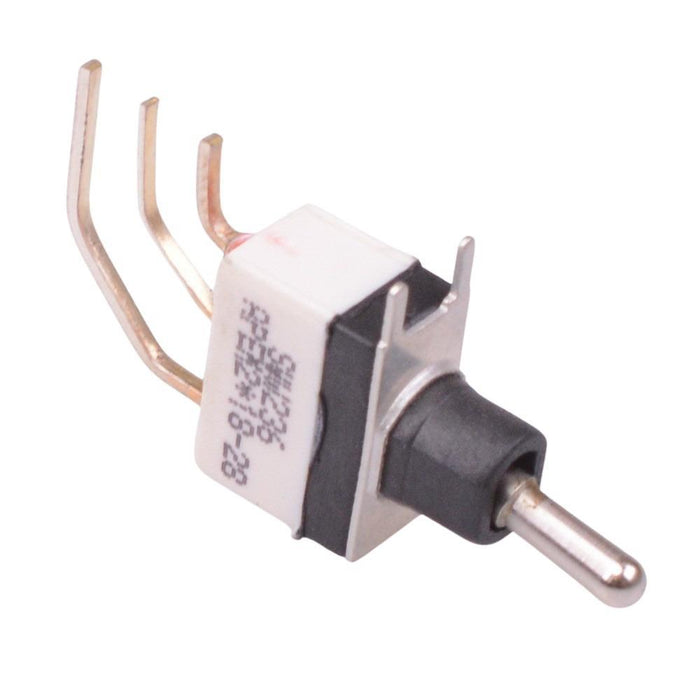

SWW236A-7UL APEM On-On Washable PCB Miniature Toggle Switch SPDT 0.4A 20V
by APEM
SKU 490157
MPN: SWW236A-7UL
Availability:
25 in stock
Original price
£4.76
-
Original price
£4.76
Original price
£4.76
£5.00
£5.00
-
£5.00
Current price
£5.00
The SWW236A-7UL is a washable miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Short lever SPDT contacts On-On function Right angle terminals Vertical mounting Silver terminals Washable Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product Series | S |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
