SWW238CTCD-7 APEM On-Off-(On) Momentary Washable PCB Miniature Toggle Switch SPDT 0.4A 20V
by APEM
SKU 488063
MPN: SWW238CTCD7
Availability:
43 in stock
Original price
£3.55
-
Original price
£3.55
Original price
£3.55
£3.55
-
£3.55
Current price
£3.55

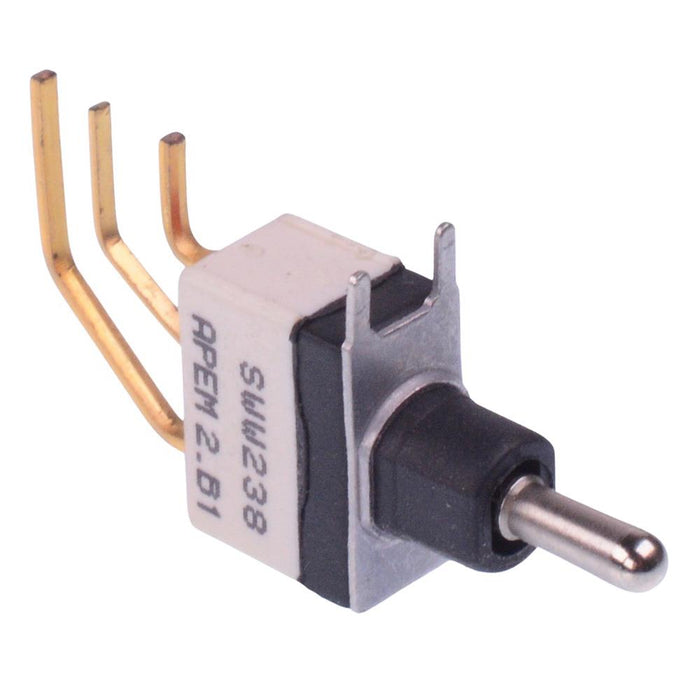

The SWW238CTCD7 is a washable momentary miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Short lever SPDT contacts On-Off-(On) momentary function Right angle terminals Vertical mounting Gold plated brass terminals Washable Compatible with wave soldering Rating: 0.4A 20VAC/DC Terminal pitch: 4.7mm
Specification
| Actuation | Latching / Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 4.7mm |
| Product Series | S |
| Switch Operation | On-Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
