SWW238THCD-7 APEM On-Off-(On) Momentary Washable PCB Miniature Toggle Switch SPDT 0.4A 20V - check function

SKU 487948


25 in stock
Original price £5.11 - Original price £5.11
Original price
£5.11 Inc VAT
£5.11 - £5.11
Current price £5.11 Inc VAT

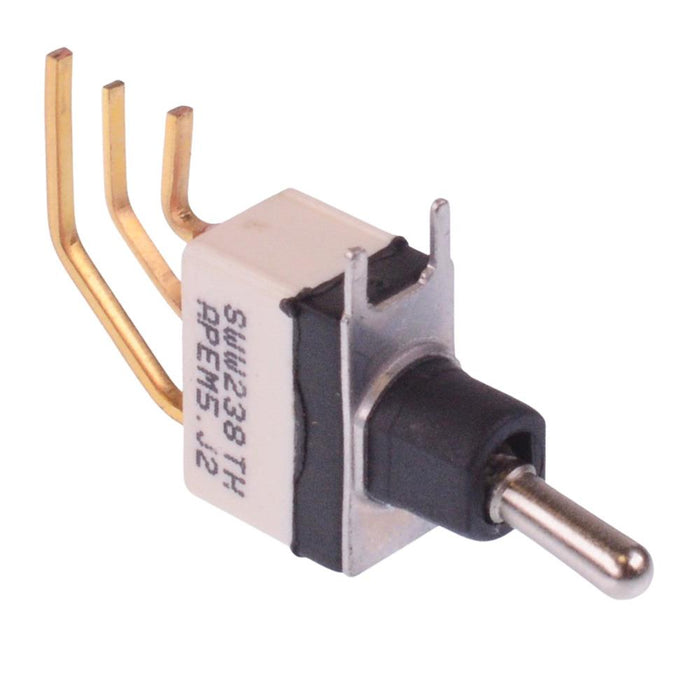

The SWW238THCD7 is a washable momentary miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Short lever
  • SPDT contacts
  • On-Off-(On) momentary function
  • Right angle terminals
  • Vertical mounting
  • Gold plated brass terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 0.4A 20VAC/DC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching / Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 3
    Operating temperature -20°C to +85°C
    Pitch 4.7mm
    Product series S
    Switch operation On-Off-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
