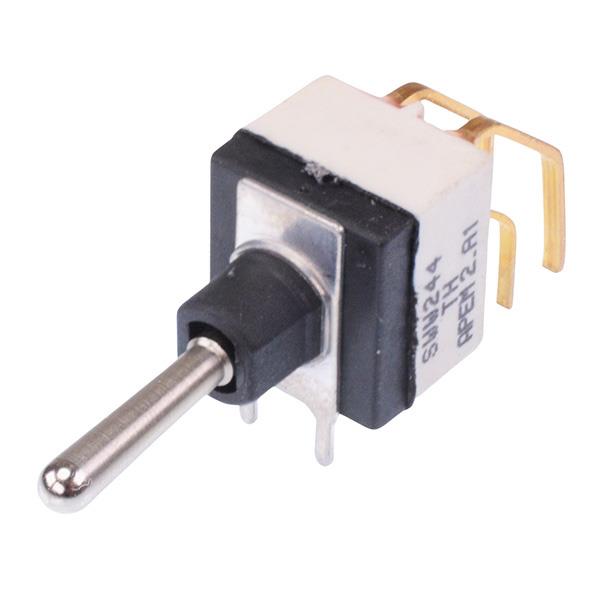

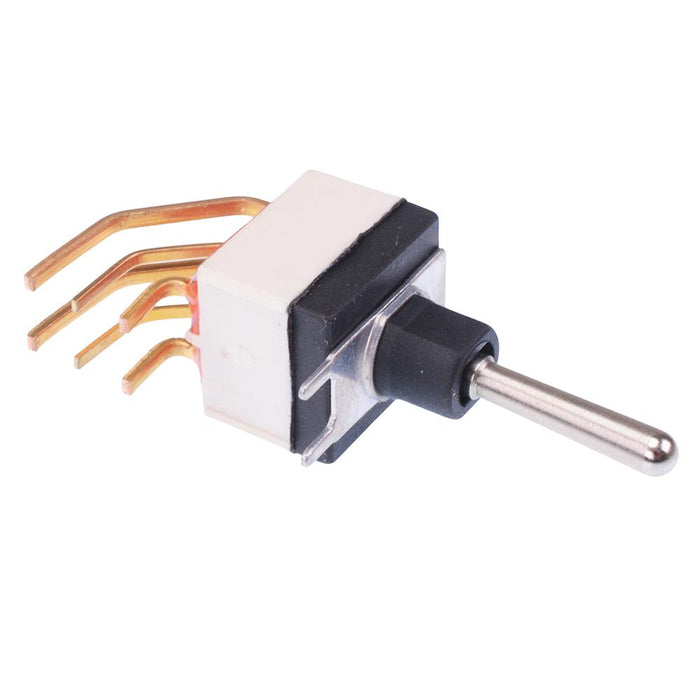

SWW244THCD-13 APEM On-On-On Washable PCB Miniature Toggle Switch DPDT 0.4A 20V

by APEM
SKU 487797

MPN: SWW244THCD13

Availability:
68 in stock
Original price £4.06 - Original price £4.06
Original price
£4.06
£4.06 - £4.06
Current price £4.06
The SWW244THCD-13 is a washable miniature toggle switch manufactured by APEM. Featuring DPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Long lever
  • DPDT contacts
  • On-On-On function
  • Right angle terminals
  • Vertical mounting
  • Gold plated brass terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 0.4A 20VAC/DC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4A 20VAC/DC
    Current Rating 0.4A
    Electrical Life 50,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -20°C to +85°C
    Pitch 4.7mm
    Product Series S
    Switch Operation On-On-On
    Terminal Type Through Hole
    Voltage Rating 20VAC/DC
