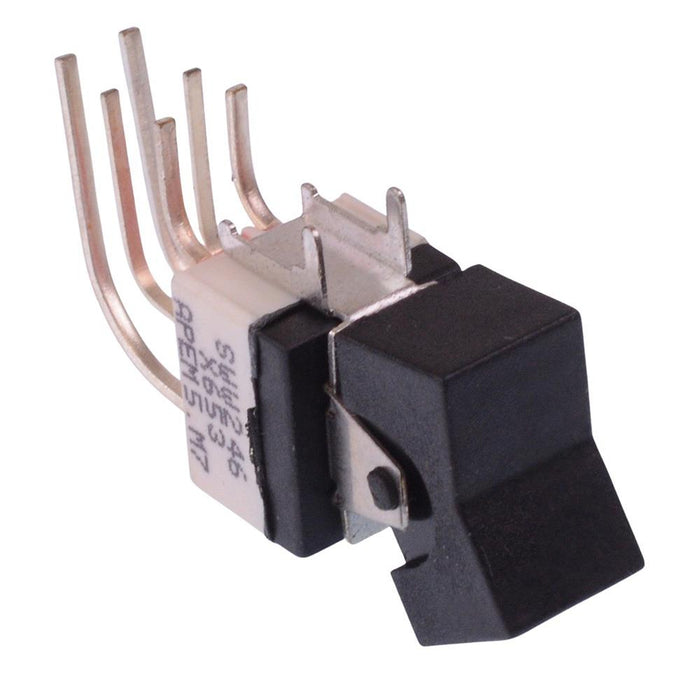

SWW246A6X653 APEM Black On-On Washable PCB Miniature Toggle Switch DPDT 4A 30VDC

by APEM
SKU 488047

MPN: SWW246A6X653

Availability:
26 in stock
Original price £4.06 - Original price £4.06
Original price
£4.06 Inc VAT
£4.06 - £4.06
Current price £4.06 Inc VAT
The SWW246A6X653 is a washable miniature toggle switch manufactured by APEM. Featuring DPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Black rocker actuator U622
  • DPDT contacts
  • On-On function
  • Right angle terminals
  • Vertical mounting
  • Silver terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 4A 30VDC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 40,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -20°C to +85°C
    Pitch 4.7mm
    Product series S
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 30VDC
