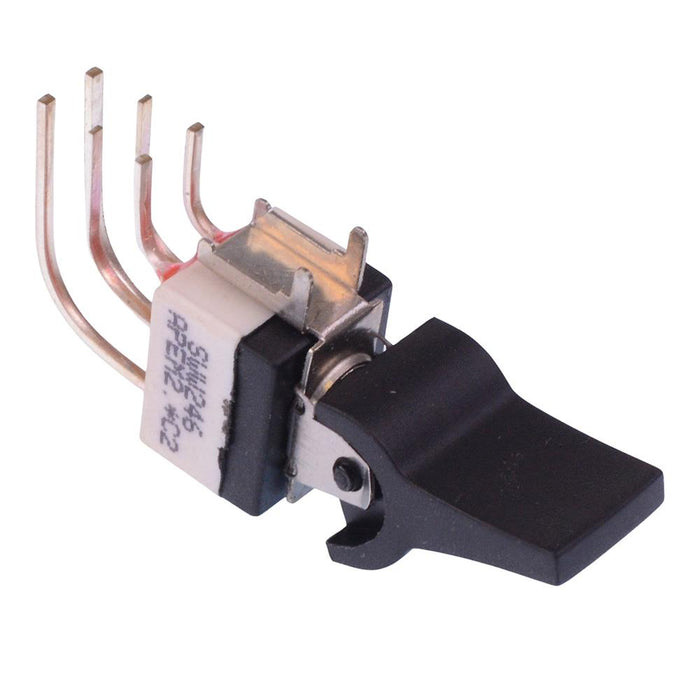

SWW246A6X653 APEM Black Paddle On-On Washable PCB Miniature Toggle Switch DPDT 4A 30VDC
by APEM
SKU 487759
MPN: SWW246A6X653+U702
Availability:
40 in stock
Original price
£6.00
-
Original price
£6.00
Original price
£6.00
£6.00
£6.00
-
£6.00
Current price
£6.00
The SWW246A6X653 is a washable miniature toggle switch manufactured by APEM. Featuring DPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Black paddle actuator U702 DPDT contacts On-On function Right angle terminals Vertical mounting Silver terminals Washable Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 4.7mm |
| Product Series | S |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
