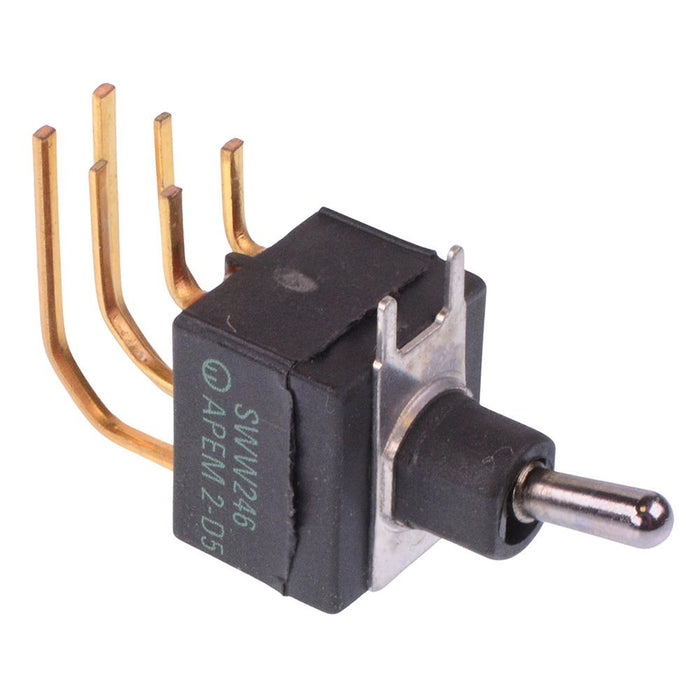

SWW246CD-7 APEM On-On Washable PCB Miniature Toggle Switch DPDT 0.4A 20V
by APEM
SKU 487337
MPN: SWW246CD7
Availability:
351 in stock
Original price
£4.56
-
Original price
£4.56
Original price
£4.56
£5.17
£5.17
-
£5.17
Current price
£5.17
The SWW246CD-7 is a washable miniature toggle switch manufactured by APEM. Featuring DPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Short lever DPDT contacts On-On function Right angle terminals Vertical mounting Gold plated brass terminals Washable Compatible with wave soldering Rating: 0.4A 20VAC/DC Terminal pitch: 4.7mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 4.7mm |
| Product Series | S |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
