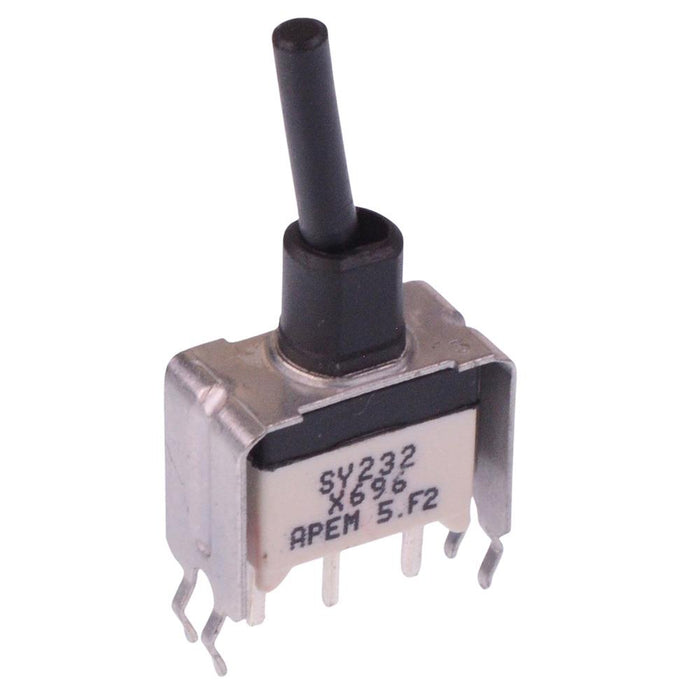

SY232A11UL APEM On-(On) Momentary Washable PCB Miniature Toggle Switch SPDT 4A 30VDC
by APEM
SKU 488006
MPN: SY232A11UL
Availability:
52 in stock
Original price
£3.69
-
Original price
£3.69
Original price
£3.69
£3.69
£3.69
-
£3.69
Current price
£3.69
The SY232A11UL is a washable momentary miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Long insulated lever SPDT contacts On-(On) momentary function Bracket mounting PCB solder terminals Silver terminals Washable Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 4.7mm |
| Product Series | S |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
