T7A22A3B2H5R On-On 12mm Toggle Switch DPDT 10A 250VAC
by Canal
SKU 491630
MPN: T7A22A3B2H5R
Availability:
24 in stock
Original price
£4.36
-
Original price
£4.36
Original price
£4.36
£4.57
£4.57
-
£4.57
Current price
£4.57

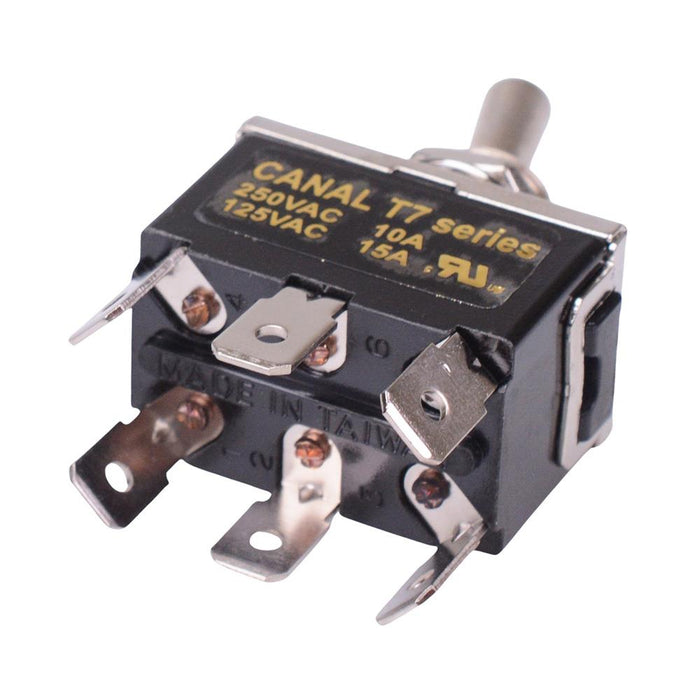

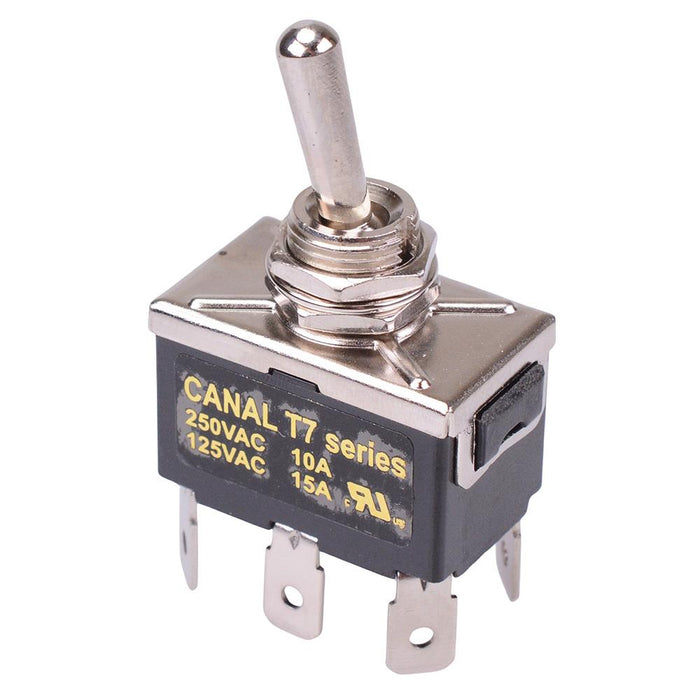

The T7A22A3B2H5R is a DPDT toggle switch with On-On function and 6.3mm quick connect terminals. The switch requires a 12mm panel cut-out, suitable for demanding applications requiring a reliable switch.
On-On function DPDT contacts 12mm panel cut-out 6.3mm quick connect terminals Rating: 10A 250VAC, 15A 125VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
