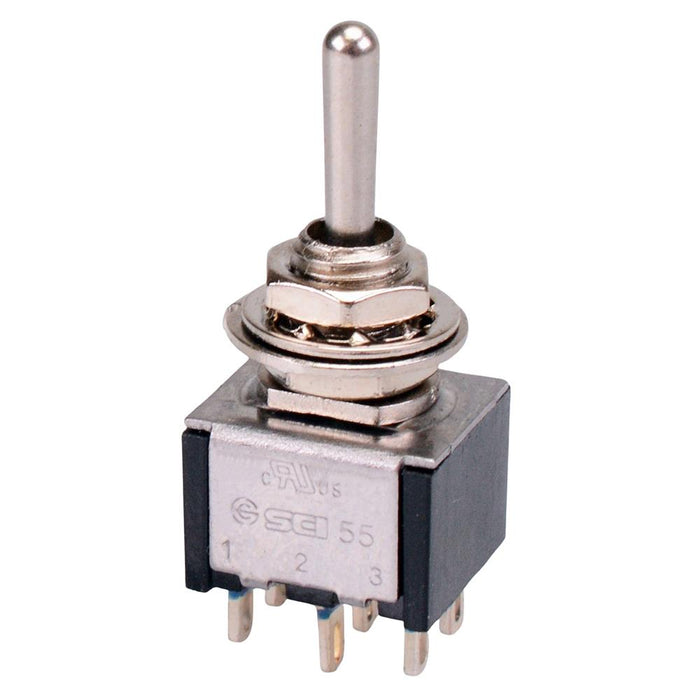

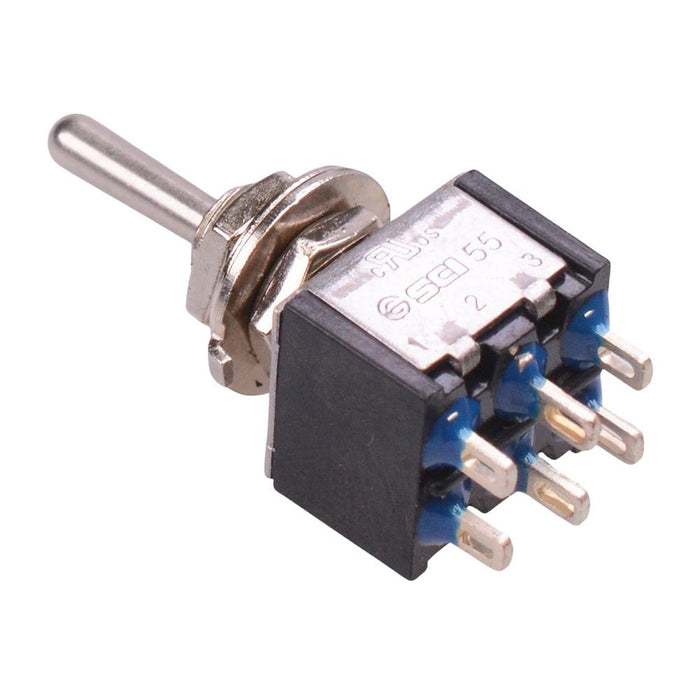

TA203A1 On-Off-On Miniature Toggle Switch DPDT 6A
by SCI
SKU 482610
MPN: TA203A1
Availability:
129 in stock
Original price
£2.00
-
Original price
£2.00
Original price
£2.00
£2.00
£2.00
-
£2.00
Current price
£2.00
The TA203A1 is a miniature size toggle switch with On-Off-On function and DPDT contacts. The switch requires a 6.2mm panel cut-out and is rated up to 6A, suitable for low power switching applications.
On-Off-On action DPDT contacts 6.2mm panel cut-out M6*0.75 thread Solder contacts Rating: 3A 250VAC, 6A 125VAC Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 6.2mm |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
