Techna PtecK3CRC 3 Position Plastic Key Switch 10A 2NO
by Techna
SKU 935404
MPN: PtecK3CRC-2NO
Availability:
9 in stock
Original price
£21.20
-
Original price
£21.20
Original price
£21.20
£21.20
-
£21.20
Current price
£21.20

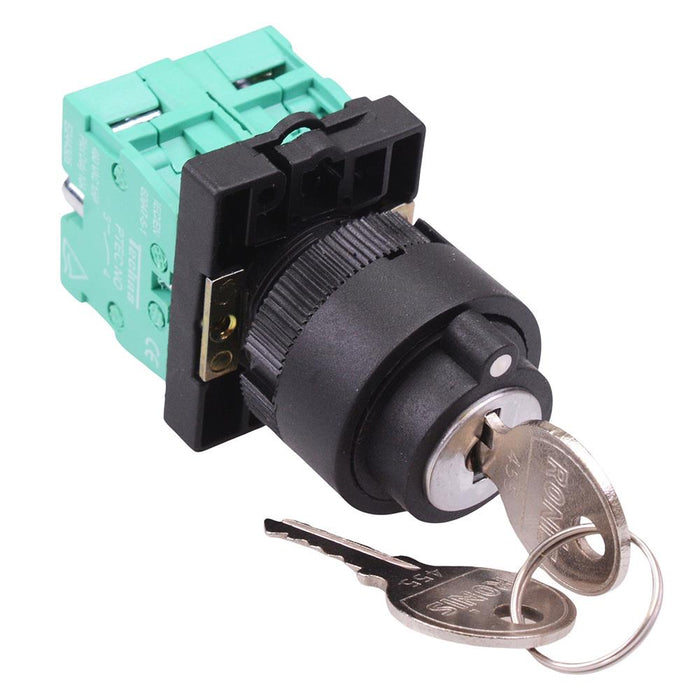

3 position key operated switch from Techna, featuring 2NO contacts and a plastic housing and suitable for standard 22.5mm mounting. The switch comes with 2 keys removable only in the central position.
Latched mechanism Plastic housing Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 2NO contacts
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Colour | Black |
| Contact Configuration | 2NO |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
