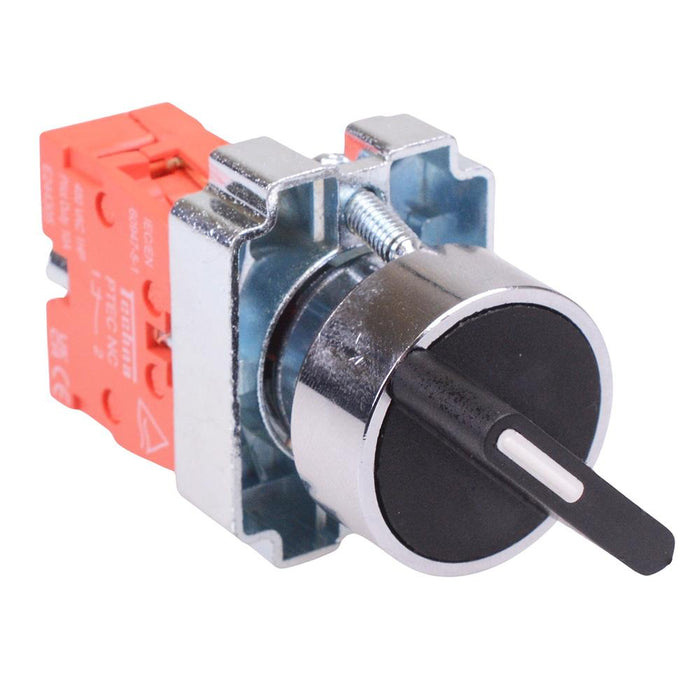

Techna PtecMetSN2F 2 Position Metal Selector Switch 10A 1NC
by Techna
SKU 935275
MPN: PtecMetSN2F-1NC
Availability:
Only 1 left!
Original price
£10.74
-
Original price
£10.74
Original price
£10.74
£10.74
-
£10.74
Current price
£10.74
2 position selector switch manufactured by Techna, featuring a 1NC contact and a latched switching mechanism suitable for 22.5mm diameter industrial applications.
Latched mechanism 2 positions Metal construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 1NC contact
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Contact Configuration | 1NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Selector |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
