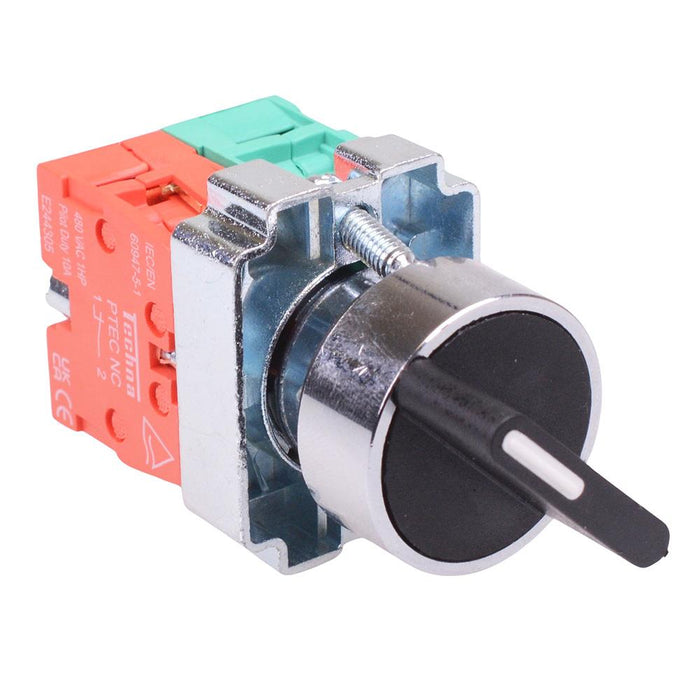

Techna PtecMetSN3F 3 Position Metal Selector Switch 10A 1NO-1NC
by Techna
SKU 935370
MPN: PtecMetSN3F-1NO-1NC
Availability:
Only 5 left!
Original price
£15.24
-
Original price
£15.24
Original price
£15.24
£15.24
-
£15.24
Current price
£15.24
3 position selector switch manufactured by Techna, featuring 1NO and 1NC contacts and a latched switching mechanism suitable for 22.5mm diameter industrial applications.
Latched mechanism 3 positions Metal construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter Rated insulation voltage: 500V Rated thermal current: 10A 1NO and 1NC contacts
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
