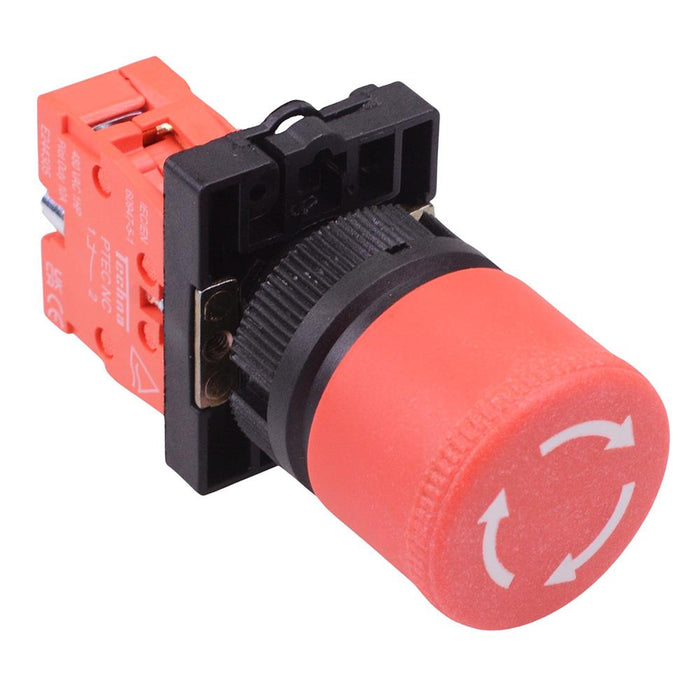

Techna PtecMushT30 30mm Emergency Stop Button Switch Plastic 10A 1NC
by Techna
SKU 935393
MPN: PtecMushT30-1NC
Availability:
9 in stock
Original price
£12.26
-
Original price
£12.26
Original price
£12.26
£12.26
-
£12.26
Current price
£12.26
High quality 30mm emergency stop button actuator manufactured by Techna, featuring a 1NC contact and a 'turn to release' actuator suitable for industrial applications.
Button diameter: 30mm Plastic construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter UL and CSA approved Rated insulation voltage: 500V Rated thermal current: 10A 1NC contact
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 5 Days |
| Colour | Red |
| Contact Configuration | 1NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
