TG39W000000 APEM On-Off-On Sub-Miniature Right Angle PCB Slide Switch SPDT
by APEM
SKU 490158
MPN: TG39W00000
Availability:
1054 in stock
Original price
£3.04
-
Original price
£3.04
Original price
£3.04
Inc VAT
£3.04
-
£3.04
Current price
£3.04
Inc VAT

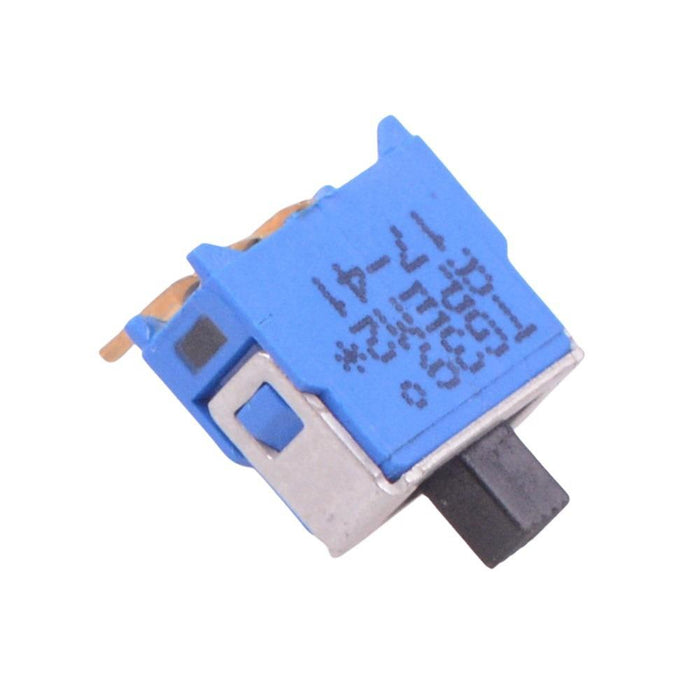

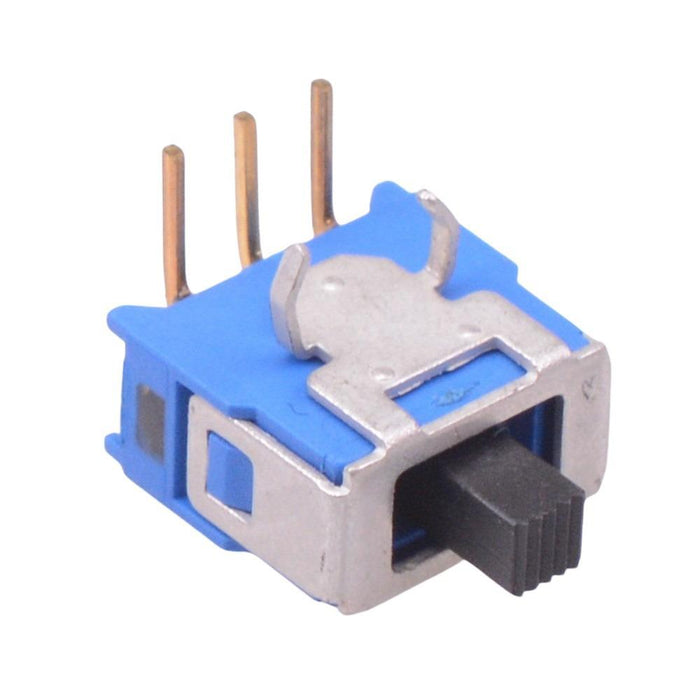

The TG39W000000 is a sub-miniature slide switch manufactured by APEM featuring SPDT contacts, designed for horizontal PCB mounting. The slide switch features a single piece case and epoxy sealed terminals making them suitable for a wide range of applications.
On-Off-On operation SPDT contacts Right angle horizontal mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 30,000 Cycles |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product series | TG |
| Switch operation | On-Off-On |
| Terminal type | PCB |
| Voltage rating | 20VAC/DC |
