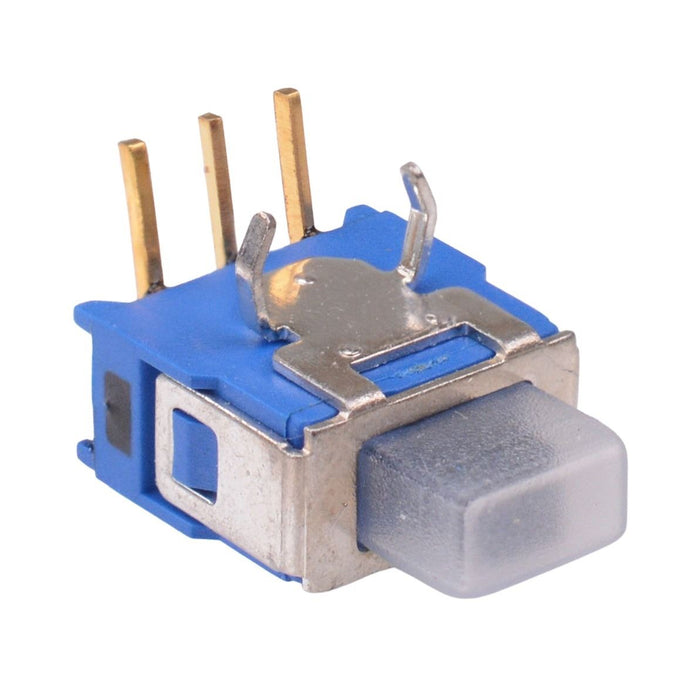

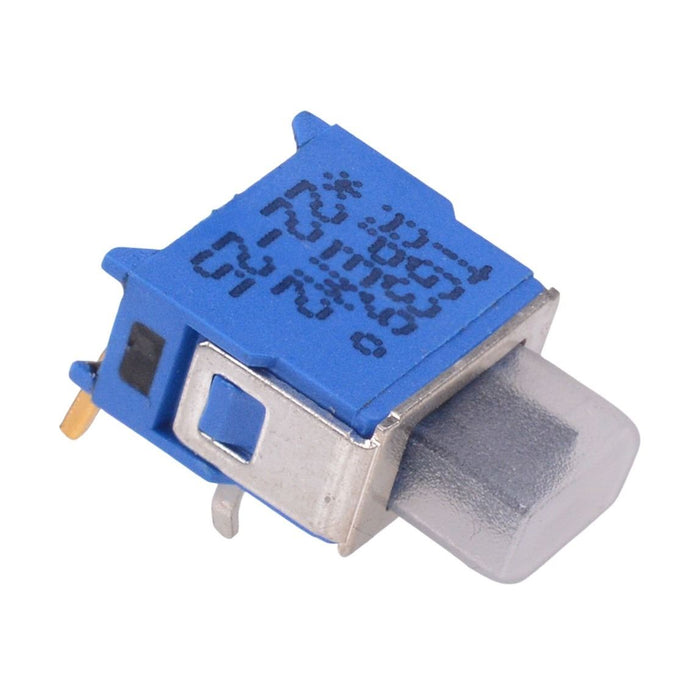

TG39W000050 APEM On-Off-On Sub-Miniature Right Angle PCB Slide Switch SPDT

by APEM
SKU 486198

MPN: TG39W000050

Availability:
100 in stock
Original price £5.72 - Original price £5.72
Original price
£5.72 Inc VAT
£5.72 - £5.72
Current price £5.72 Inc VAT
The TG39W000050 is a sub-miniature slide switch manufactured by APEM featuring SPDT contacts, designed for horizontal PCB mounting. The slide switch features a single piece case and epoxy sealed terminals making them suitable for a wide range of applications.

  • On-Off-On operation
  • SPDT contacts
  • Right angle horizontal mounting
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20V
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20V
    Current rating 0.4A
    Electrical life 30,000 Cycles
    Material Thermoplastic
    Mounting style PCB
    Number of poles 1
    Number of positions 3
    Operating temperature -30°C to 85°C
    Pitch 2.54mm
    Product series TG
    Switch operation On-Off-On
    Terminal type Solder
    Voltage rating 20VAC/DC
