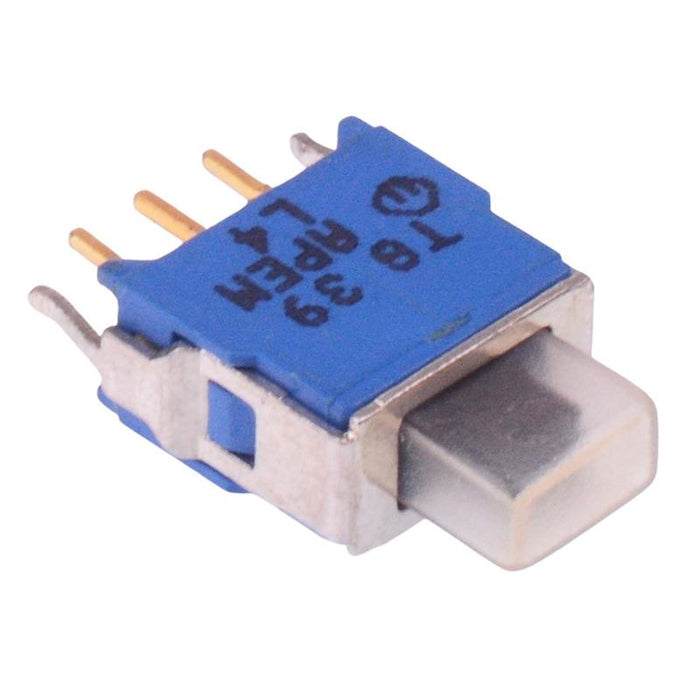

TG39Y00050 APEM On-Off-On Subminiature Slide Switch PCB SPDT 0.4A 20V
by APEM
SKU 487275
MPN: TG39Y00050
Availability:
883 in stock
Save 0%
Original price
£4.91
Original price
£4.91
-
Original price
£4.91
Original price
£4.91
Current price
£4.90
£4.90
-
£4.90
Current price
£4.90
The TG39Y00050 is a sub-miniature slide switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The slide switch features a single piece case and epoxy sealed terminals making them suitable for a wide range of applications.
On-Off-On operation SPDT contacts PCB bracket mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 30,000 Cycles |
| Material | Thermoplastic |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TG |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 20VAC/DC |
