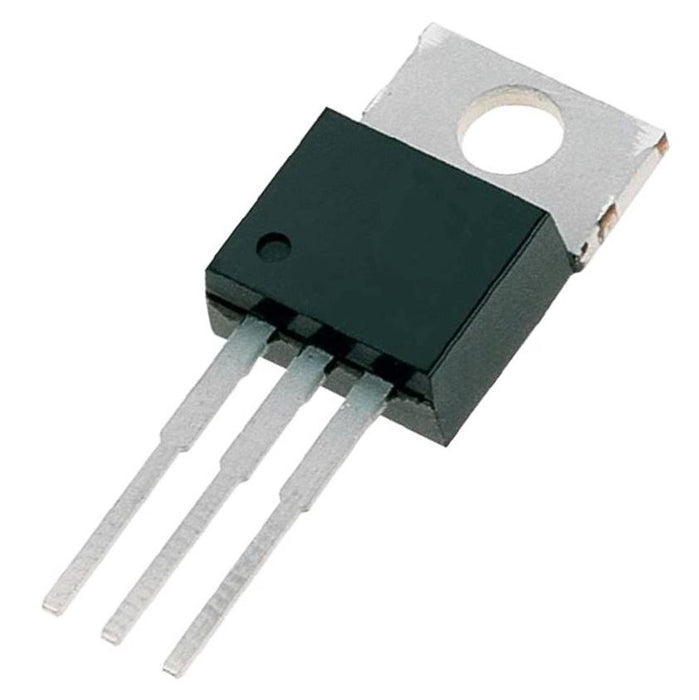

TIP120 ST NPN DARL Transistor 60V TO-220

by ST
SKU 551567

MPN: TIP120

Availability:
101 in stock
Original price £0.65 - Original price £0.65
Original price
£0.65
£0.65 - £0.65
Current price £0.65

The TIP120 NPN transistor has a base island layout with planar technology and monolithic darlington configuration. The transistor shows exceptional high gain performance coupled with very low saturation voltage. Suitable for general purpose linear and switching applications. Supplied in TO220 packaging. For further technical specifications please refer to the attached datasheet.

  • Low collector-emitter saturation voltage
  • Complementary NPN - PNP transistors
  • General purpose linear and switching
  • 65W 5A 60V TO220 DARL
Specification
Back Order Lead Time 5 Days
Collector Base Voltage 60V
Collector Current 5A
Collector Emitter Saturation Voltage 4V
Collector Emitter Voltage 60V
DC Current Gain 100
Maximum Operating Temperature 150°C
Mounting Type Through Hole
Package TO220AB
Power Dissipation 2W
Type NPN
