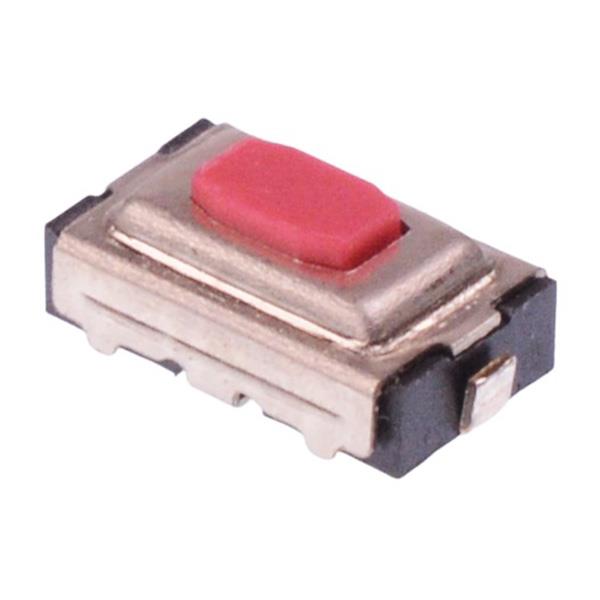

TJG-325RV/TR Diptronics 3.7x6mm Thin Tactile Switch 50mA 12VDC
by Diptronics
SKU 487536
MPN: TJG-325RV/TR
Availability:
2764 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
£0.18
-
£0.18
Current price
£0.18
The TJG-325RV/TR is a PCB tactile switch featuring 2.5mm height and anti-ESD ground terminal, suitable for high density PCB mounting.
Height: 2.5mm Dimensions: 3.7 x 6mm (width x length) 0.4mm height button Rating: 50mA 12VDC Operating force: 260gf With ground pin
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 20,000 Cycles |
| Height | 2.5mm |
| MOQ | 5 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 260gf |
| Operating Temperature | -25°C to +70°C |
| Product Series | TJG |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
