TL061 Low Power Single J-FET Op-Amp

The TL061 are high speed J-FET input single operational amplifiers family. Each of these J-FET input operational amplifiers incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

Very low power consumption: 200uA

Wide common-mode (Up to V +) and CC differential voltage ranges

Low input bias and offset currents

Output short-circuit protection

High input impedance J-FET input stage

Internal frequency compensation

Latch up free operation

High slew rate: 3.5V/μs

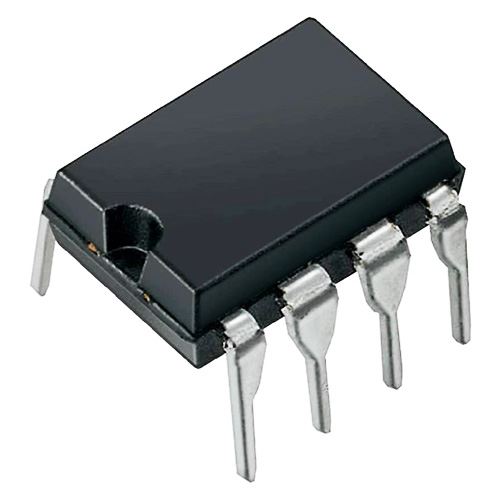

Package: DIL-8
