TL36W004000 APEM On-On Subminiature Washable PCB Toggle Switch SPDT

by APEM
SKU 487708

MPN: TL36W004000

Availability:
300 in stock
Original price £2.53 - Original price £2.53
Original price
£2.53
£2.53 - £2.53
Current price £2.53

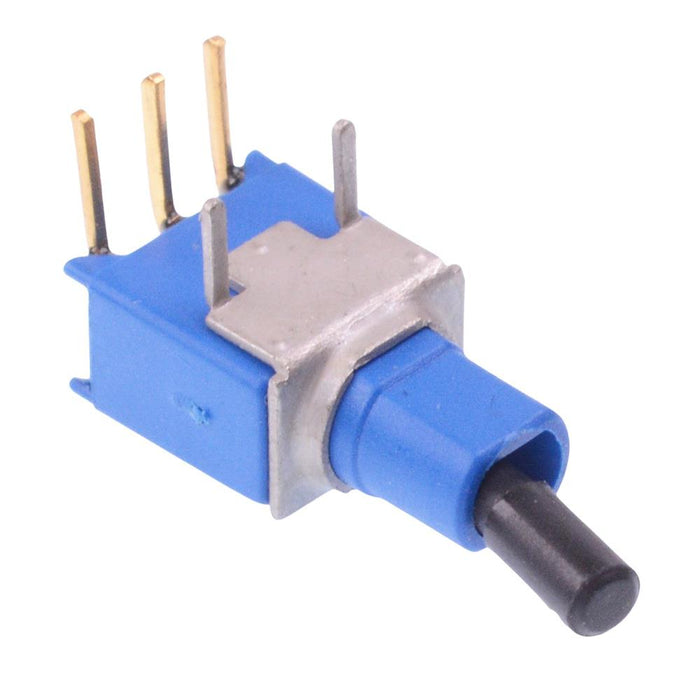

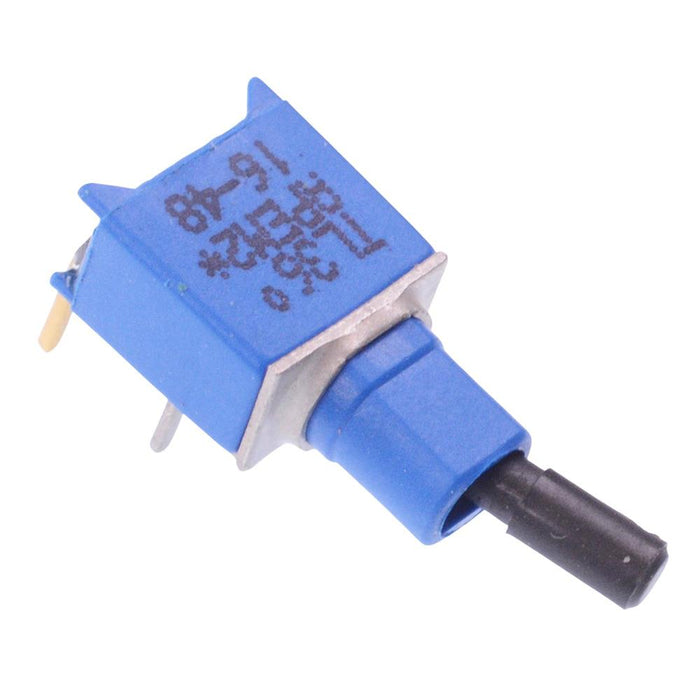

The TL36W004000 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-On operation
  • SPDT contacts
  • Right angle PCB terminals
  • Horizontal PCB mounting
  • Short insulated lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4A 20AC/DC
    Current Rating 0.4A
    Electrical Life 60,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -30°C to +85°C
    Pitch 2.54mm
    Product Series TL
    Switch Operation On-On
    Terminal Type Through Hole
    Voltage Rating 20VAC/DC
