TL36W015200 APEM On-On Subminiature Washable PCB Toggle Switch SPDT
by APEM
SKU 488238
MPN: TL36W015200
Availability:
22 in stock
Original price
£3.55
-
Original price
£3.55
Original price
£3.55
£4.02
£4.02
-
£4.02
Current price
£4.02

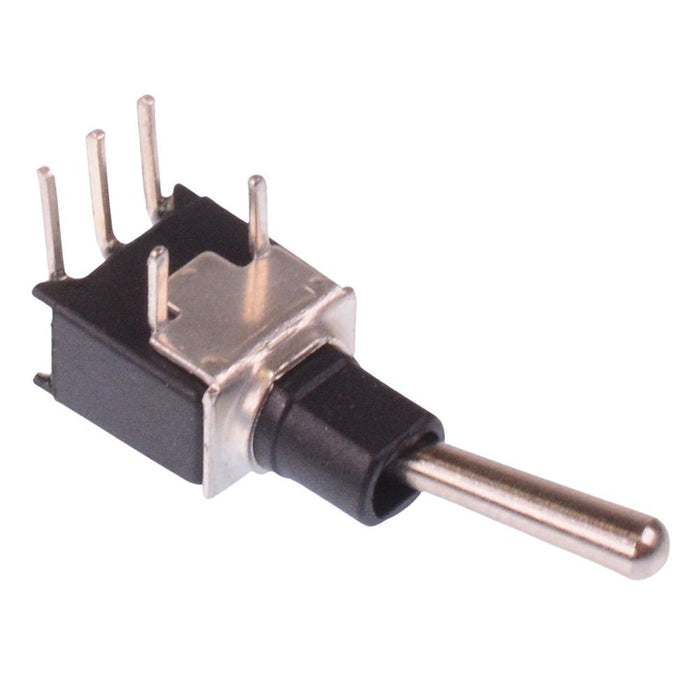

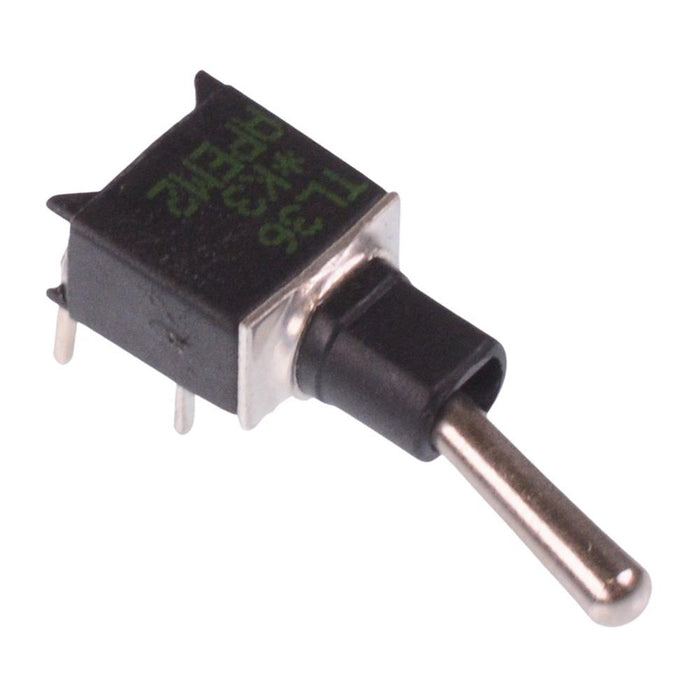

The TL36W015200 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation SPDT contacts Right angle PCB terminals Horizontal PCB mounting Long lever Silver plated brass terminals 2.54mm pitch Rating: 0.5A 48VAC/DC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver Plated Brass |
| Contact Rating | 0.5A 48VAC/DC |
| Current Rating | 0.5A |
| Electrical Life | 20,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 48VAC/DC |
