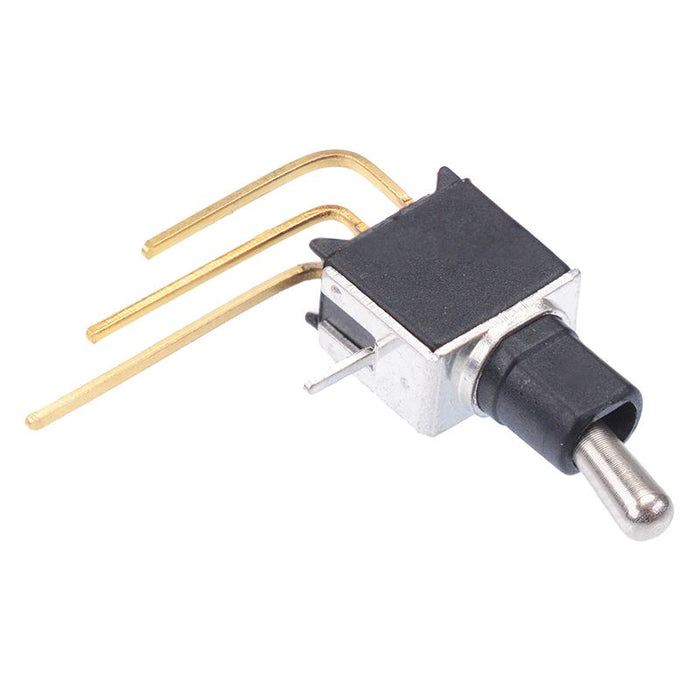

TL36WW05000 On-On Sub-Miniature Right Angle Vertical PCB Toggle Switch SPDT APEM
by APEM
SKU 486201
MPN: TL36WW05000
Availability:
Out of stock
Sold out
Original price
£5.07
-
Original price
£5.07
Original price
£5.07
£5.75
£5.75
-
£5.75
Current price
£5.75
The TL36WW05000 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for right angle vertical PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications.
On-On operation SPDT contacts Vertical right angle PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 20VAC/DC |
